24B2XDAM
Thin and sleek 23.8" VA monitor with lively colours, wide angle visibility and eye-friendly technology
The 24B2XDAM from the B2 Series employs a 23.8" Full HD VA panel offering wide viewing angles, accurate and lively colours plus flexible connectivity. It features a slim profile and a 3-sides borderless panel for seamless multi monitor setups. Say goodbye to eyestrain thanks to AOC's LowBlue and FlickerFree technologies.

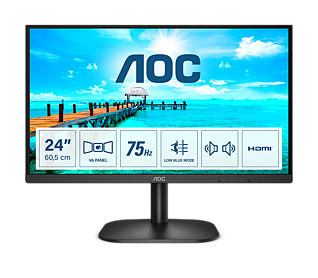

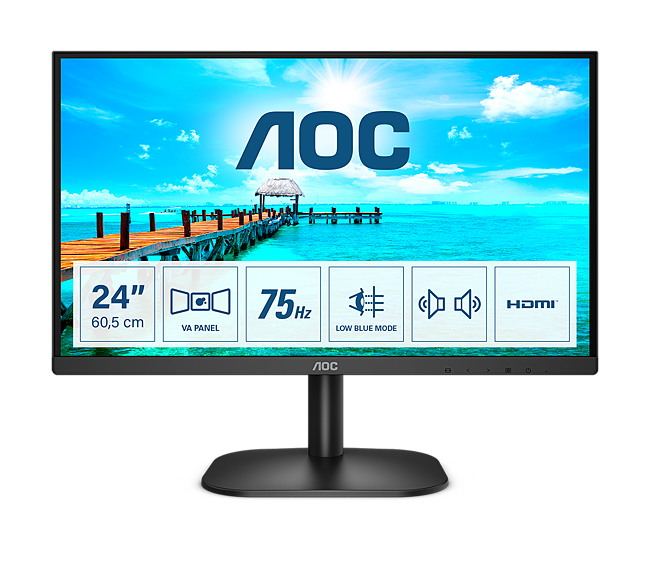

  • INFOSCREEN

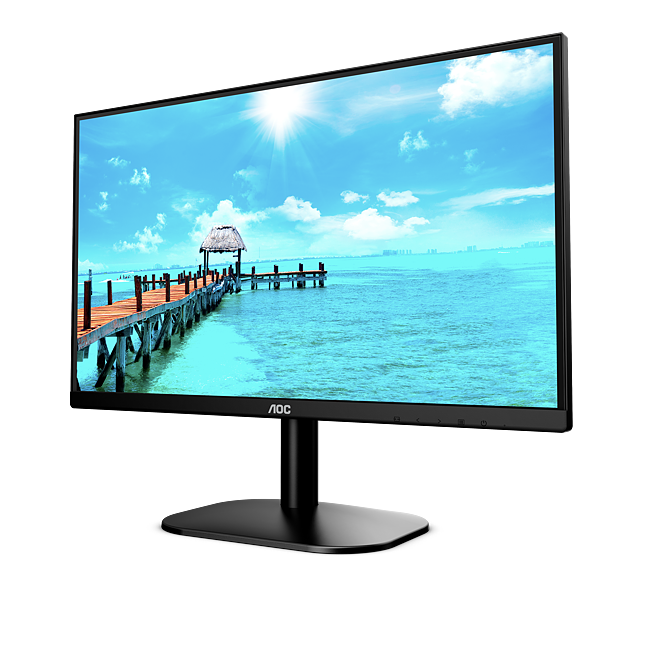

  • HERO 1
  • HERO 2 FRONT (NO PANEL)

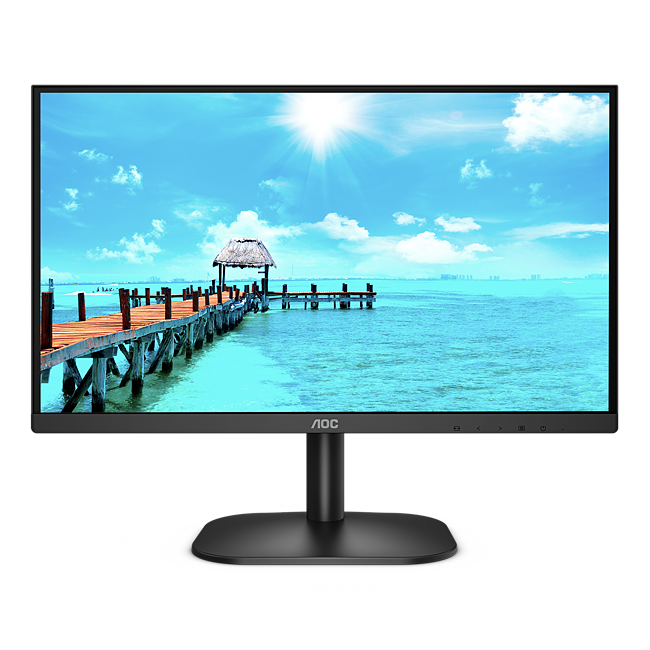

  • FRONT (PRODUCT SHOT)

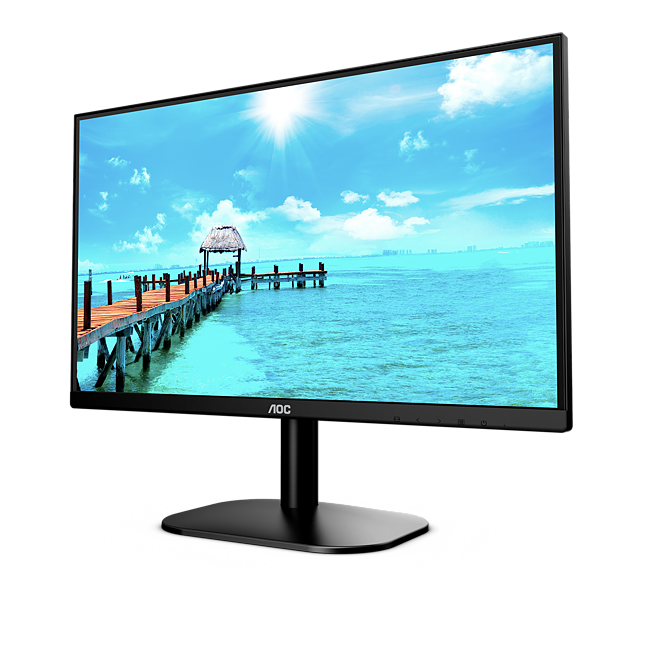

  • FTL

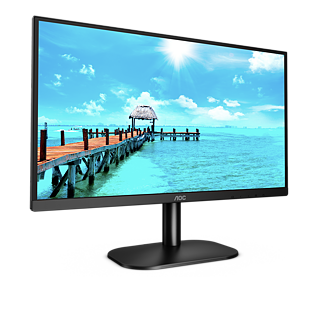

  • FTR

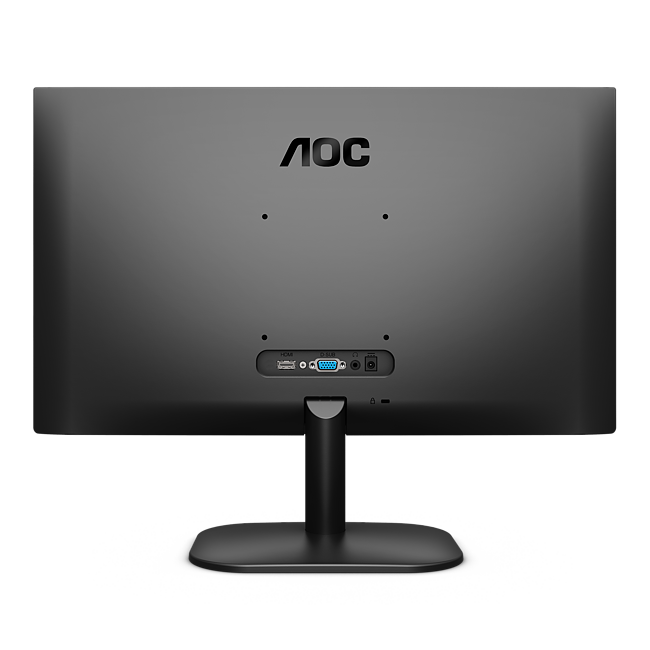

  • BACK

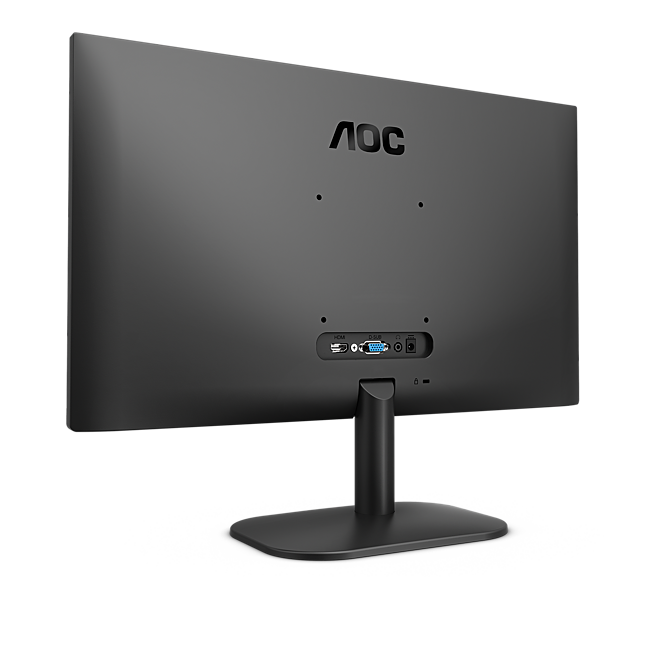

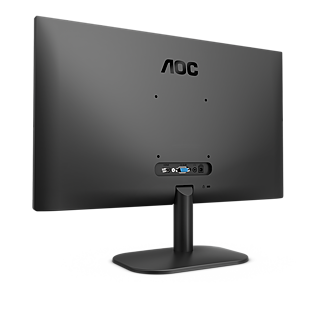

  • BTR

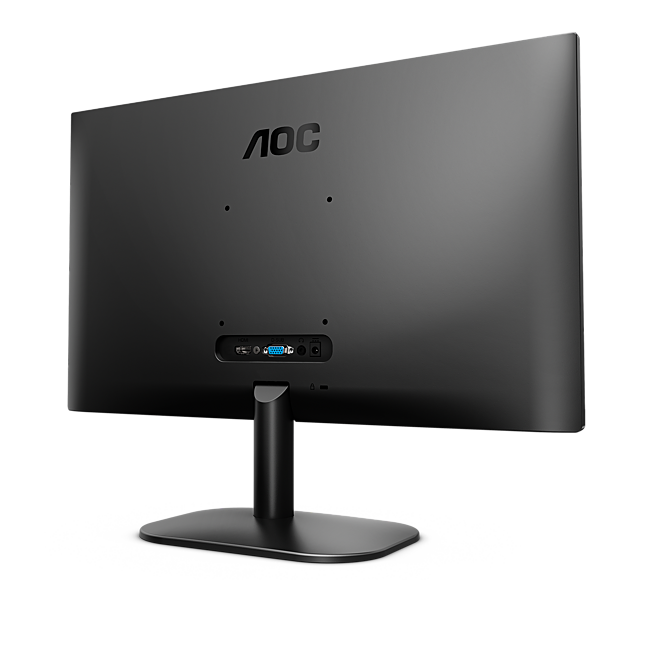

  • BTL

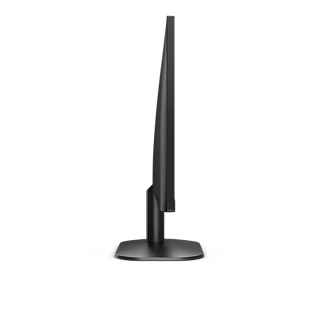

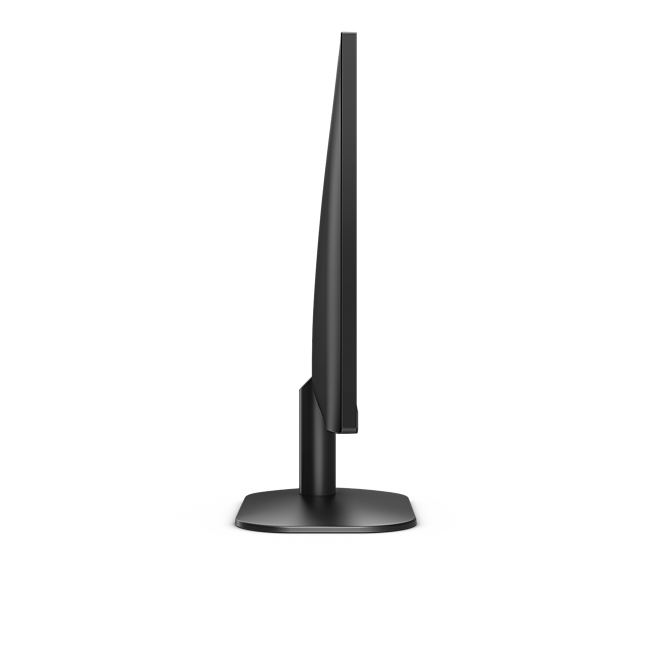

  • SIDE RIGHT
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon

  • INFOSCREEN
  • HERO 1
  • HERO 2 FRONT (NO PANEL)
  • FRONT (PRODUCT SHOT)
  • FTL
  • FTR
  • BACK
  • BTR
  • BTL
  • SIDE RIGHT
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon
  • Icon

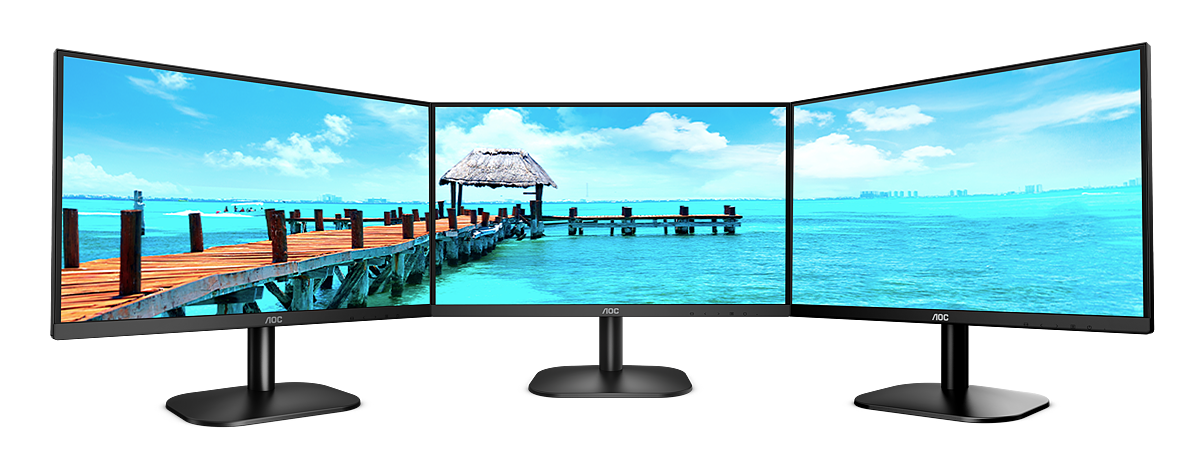

Frameless design
Frameless design
Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.

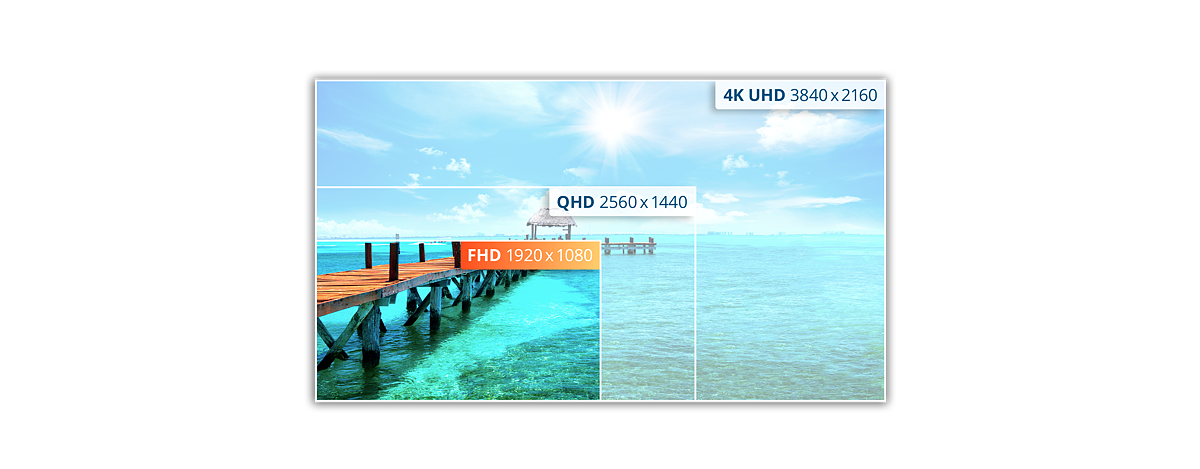

FHD Resolution
FHD Resolution
Want to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system’s resources.

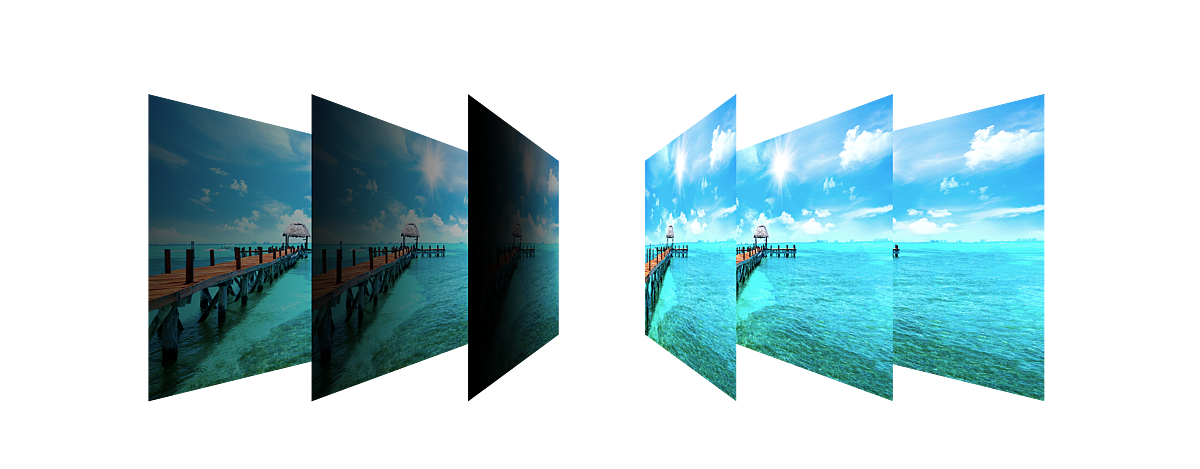

VA Panel
VA Panel
VA Panels (Vertical Alignment) display deeper blacks and a high contrast for extra vivid and bright images.

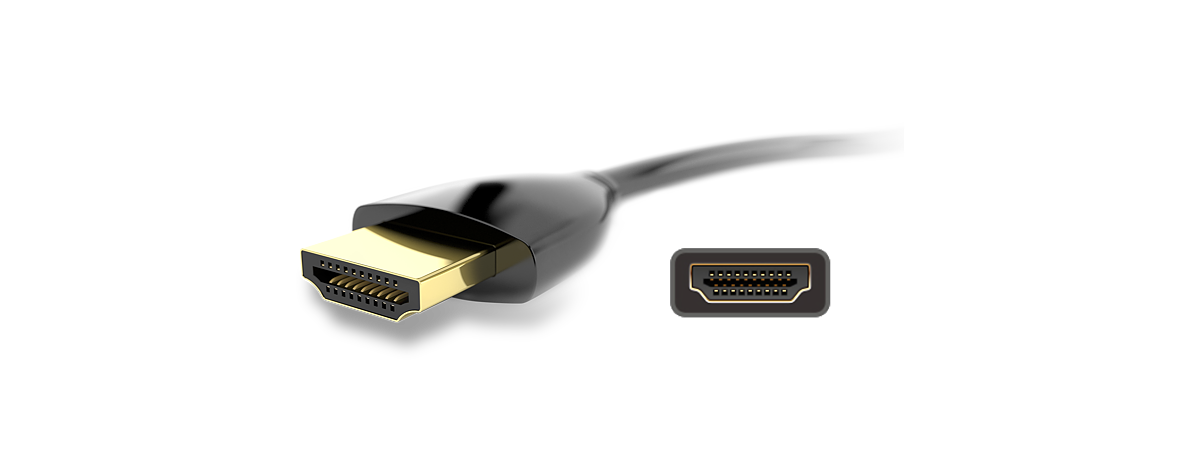

HDMI
HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

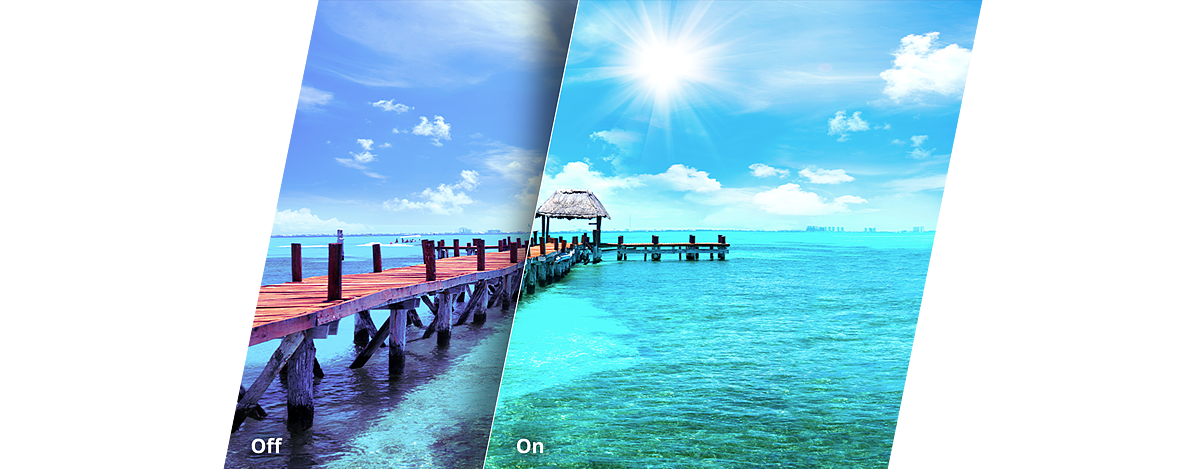

Low Blue Light
Low Blue Light
AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowblue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.

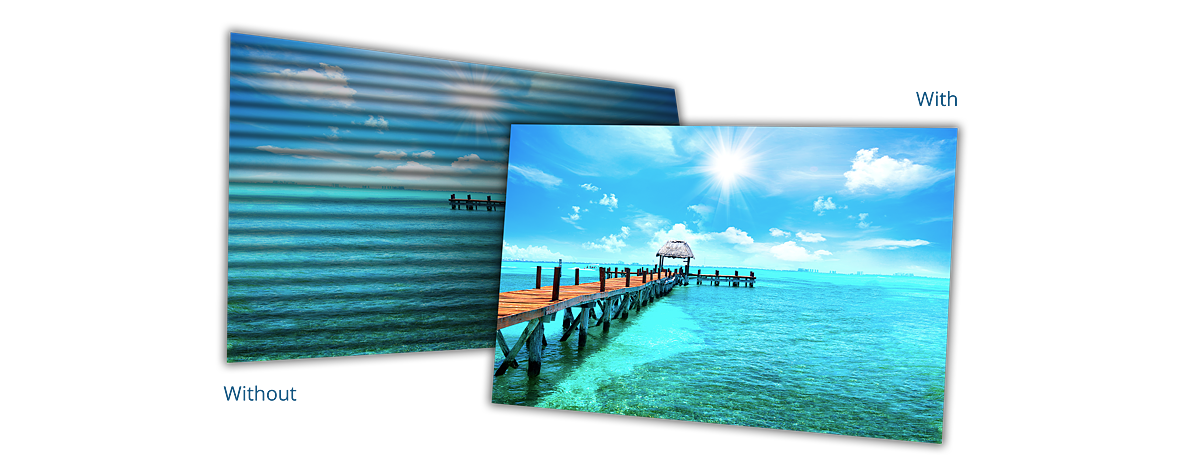

Flicker Free
Flicker Free
AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!
Technical Specifications
Display information
Screen size (inch) 23,8
Screen size (cm) 60,452
Flat / Curved Flat
Display viewing Area (HxW) in mm 527,04 x 296,46
Display hardness 3H
Panel treatment Antiglare (AG)
Pixel Pitch (mm) 0,275
Pixels per Inch 93
Panel resolution 1920x1080
Aspect ratio 16:9
Panel type VA
Backlight type WLED
Max Refresh rate 75 Hz
Response time GtG 4 ms
Static contrast ratio 3000:1
Dynamic contrast ratio 20M:1
Viewing angle (CR10) 178/178
Display colours 16.7 Million
Video features
Blue Light Technology Low Blue Light
Colour space (NTSC) CIE 1931 % 72
Flicker-Free Flicker Free
Cabinet information
Bezel type (front) 3-sided frameless
Bezel Colour (front) Black
Bezel finishing (front) Texture
Cabinet colour (backside) Black
Cabinet finishing (backside) Texture
Light FX (RGB) False
Removable stand True
Speakers True
Speaker power 2 W x 2
Built-in Microphone False
Kensington Lock True
Vesa wallmount 100x100
Ergonomic information
Tilt -5/20
Pivot No
Connectivity information
HDMI HDMI 1.4 x 1
USB Hub False
USB fast charge port False
Audio Output Headphone out (3.5mm)
Audio Input True
D-SUB (VGA) 1x
DVI 1x DVI-D
Sustainability
WEEE True
REACH compliant True
RoHs compliant True
HF True
Mercury free True
Recycable packaging material 100 % recycable
Power consumption
Power supply External
Power source 100 - 240V 50/60Hz
Power consumption standby in watts 0,5
Power consumption off in watts 0,3
Energy class F
Regulatory compliance
CB True
CE True
TUV-Bauart-Mark False
TUV-GS-Mark True
ISO 9241-307 True
TUV Ergo False
EAC True
FCC True
Microsoft WHQL True
Product dimensions
Product dimensions incl. base (WxHxD) mm 418.35(H) x 539.47(W) x 170.94(D)
Product dimensions excl. base (WxHxD) mm 318.8(H) x 539.5(W) x 37.5(D)
Packaging dimensions (WxHxD) mm 467(H) x 592(W) x 106(D)
Gross weight incl. package (in kg) 4,5
Net weight excl. package (in kg) 2,7
What's in the box
HDMI cable 1.8
Power cable C13 1.8
Other information
OSD languages English, French, German, Czech, Russian, Kroatian, Chinese (traditional), Chinese (simplified), Spanish, Portuguese, Italian, Dutch, Swedish, Finnish, Polish, Japanese, Ukranian, Turkish, Korean
Warranty period 3 years
