Infinite Range CombiHob – NZ84T9747VK/UR
Documents
2021.01.05
uk-energylabel-nz84t9747vk-ur-energylabel Document with Grade A+
(Energy Label document with Grade A+)
329.52KB

Infinite Range CombiHob – NZ84T9747VK/UR
Gallery Image 1 of 19
Gallery Image 2 of 19
Gallery Image 3 of 19
Gallery Image 4 of 19
Gallery Image 5 of 19
Gallery Image 6 of 19
Gallery Image 7 of 19
Gallery Image 8 of 19
Gallery Image 9 of 19
Gallery Image 10 of 19
Gallery Image 11 of 19
Gallery Image 12 of 19
Gallery Image 13 of 19
Gallery Image 14 of 19
Gallery Image 15 of 19
Gallery Image 16 of 19
Gallery Image 17 of 19
Gallery Image 18 of 19
Gallery Image 19 of 19
» «
Thumbnail Image 1 of 19
Thumbnail Image 2 of 19
Thumbnail Image 3 of 19
Thumbnail Image 4 of 19
Thumbnail Image 5 of 19
Thumbnail Image 6 of 19
Thumbnail Image 7 of 19
Thumbnail Image 8 of 19
Thumbnail Image 9 of 19
Thumbnail Image 10 of 19
Thumbnail Image 11 of 19
Thumbnail Image 12 of 19
Thumbnail Image 13 of 19
Thumbnail Image 14 of 19
Thumbnail Image 15 of 19
Thumbnail Image 16 of 19
Thumbnail Image 17 of 19
Thumbnail Image 18 of 19
Thumbnail Image 19 of 19
» «

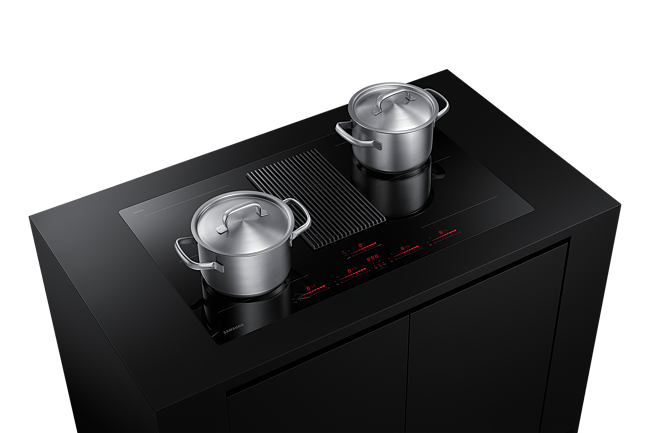

Hob with integrated extractor
Flushed Fit Design
Dual Flex Zone
A new performance for hobs
Hob with integrated extractor

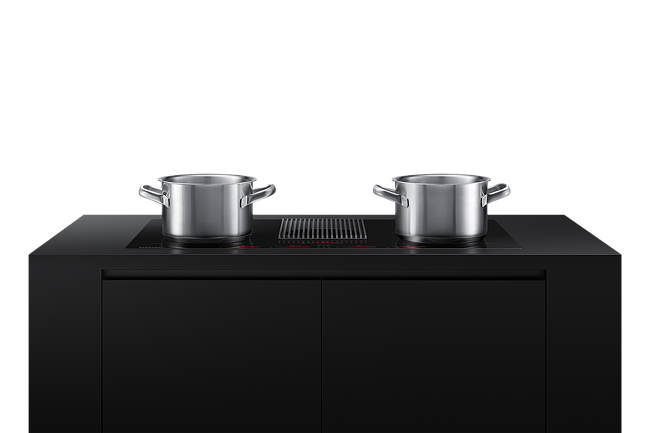

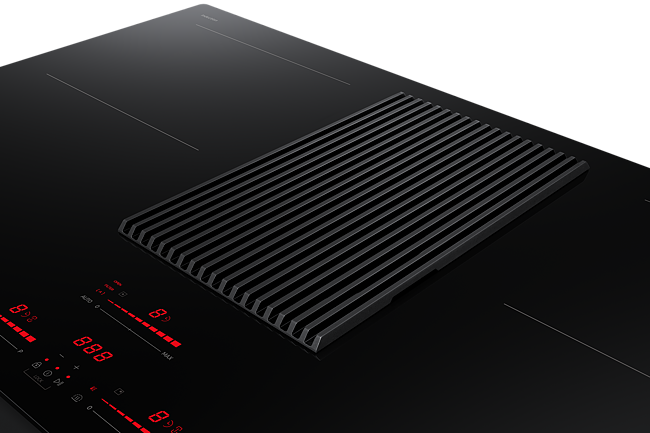

Install your cooktop anywhere and rapidly refresh the air. An integrated hood in the center of the cooktop captures odors and vapors in a flash with a powerful 575m³/h ventilation speed. And, with no separate hood, you can install the cooktop wherever you want, like on an island table.
A new performance for hobs
  • Fits in seamlessly with your kitchen

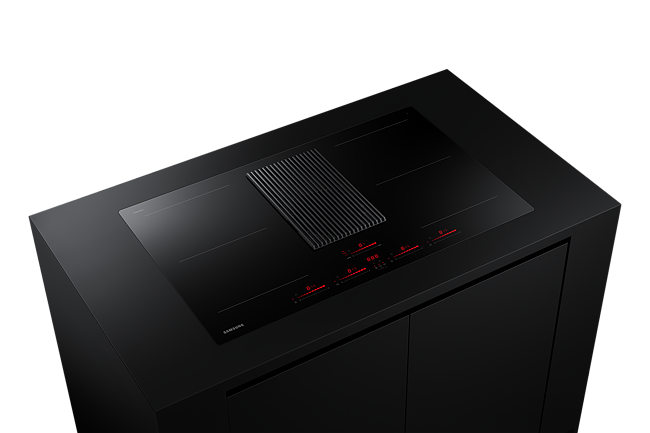

    Flushed Fit Design

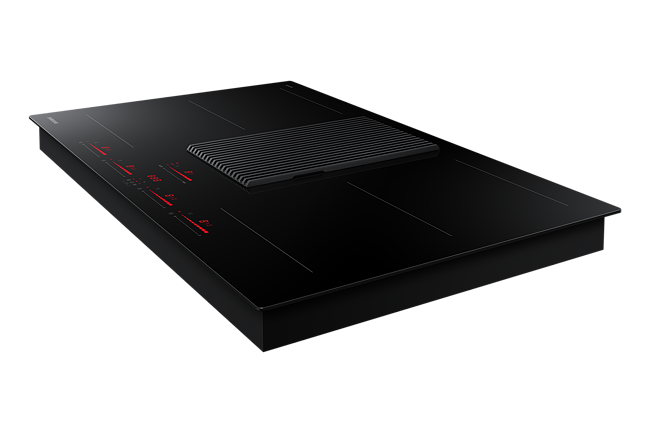

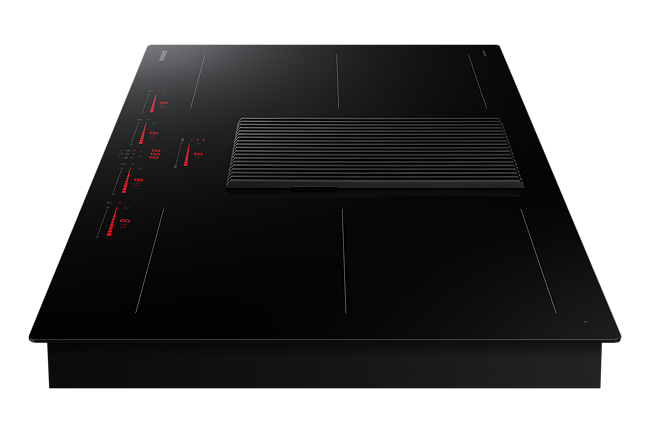

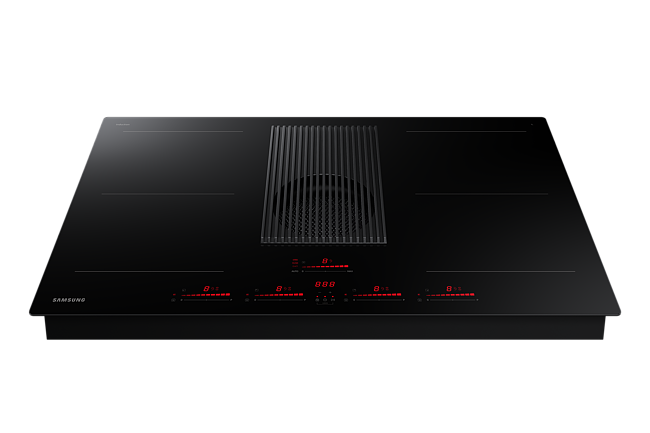

    Create a seamless and premium looking kitchen interior. The cooktop’s minimalist Flushed Fit design has a clean and stylish appearance. It fits perfectly with the surface of your existing cabinetry to create a fully integrated look. And it’s also simple to maintain with easy access from below*.
    Fits in seamlessly with your kitchen
  • Fits in seamlessly with your kitchen
    Flushed Fit Design
    Create a seamless and premium looking kitchen interior. The cooktop’s minimalist Flushed Fit design has a clean and stylish appearance. It fits perfectly with the surface of your existing cabinetry to create a fully integrated look. And it’s also simple to maintain with easy access from below*.
    Fits in seamlessly with your kitchen
Prev Next
* Except for the burners and the power board assembly (PBA).
  • More flexibility,more cookware choice

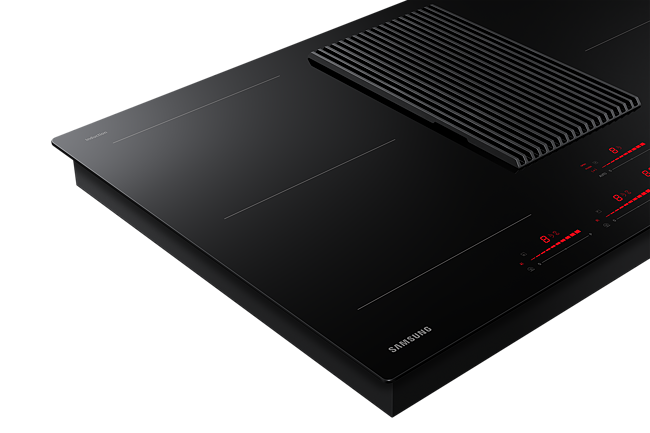

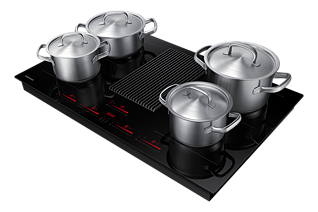

    Dual Flex Zone

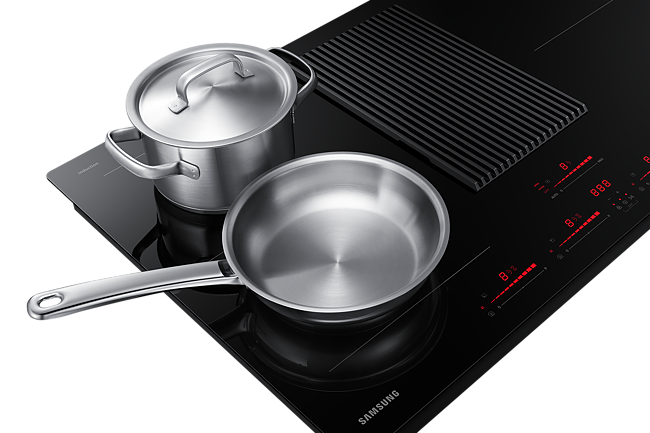

    Cook many different dishes at once on the Dual Flex Zone. It has two wide, open areas that give you much greater flexibility to use various types of cookware, including large and long dishes.
    More flexibility,more cookware choice
  • More flexibility,more cookware choice
    Dual Flex Zone
    Cook many different dishes at once on the Dual Flex Zone. It has two wide, open areas that give you much greater flexibility to use various types of cookware, including large and long dishes.
    More flexibility,more cookware choice
Prev Next
Rapidly remove odors & refresh the air
High Suction Power (575m³/h)

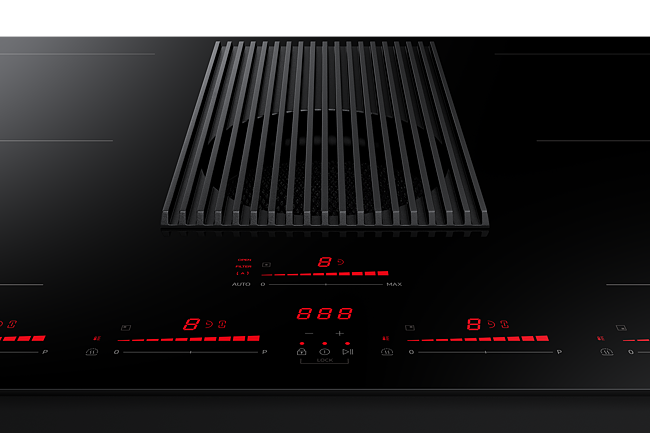

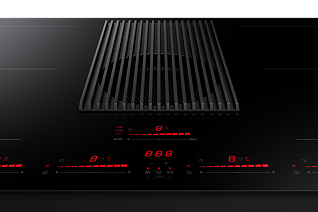

Enjoy a comfortable and healthy cooking environment with powerful ventilation. The integrated hood eliminates odors and refreshes the kitchen air in a flash with an incredible suction power of 575m³/h. And you don’t need to find extra room for a separate hood, so it is very space efficient.
Rapidly remove odors & refresh the air
Banish cooking odors

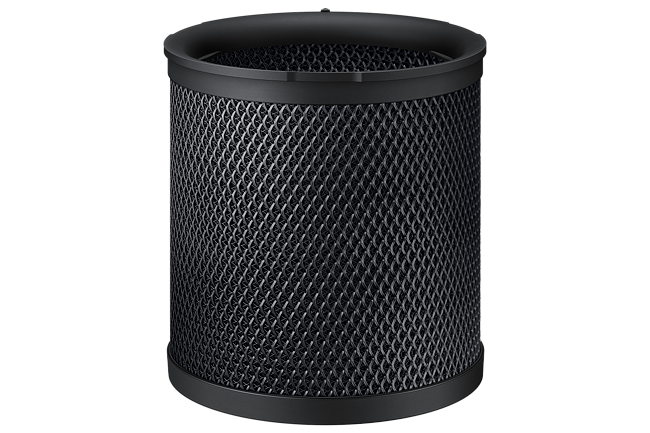

Removable Ceramic Odor Filter
Prevent unpleasant odors from lingering in the kitchen. A Removable Ceramic Odor Filter removes strong cooking smells, so you can enjoy a fresher home. It’s also easy to keep clean as it is made of ceramic. Simply detach and heat it in an oven to maintain the optimum deodorizing performance.
Banish cooking odors
Breathe cleaner air
Easy Clean Aluminium Grease Filter

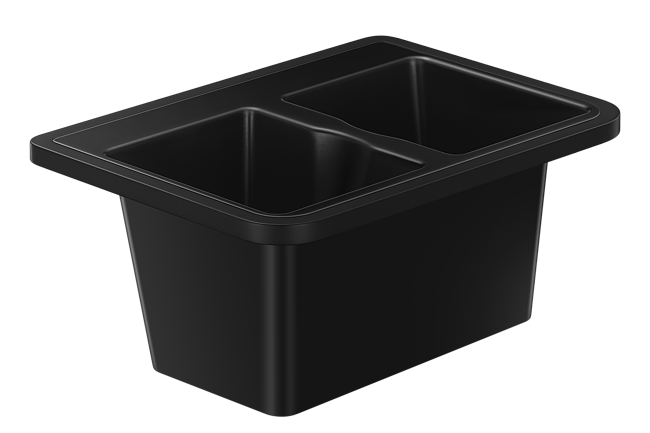

Keep the grease filter and inside of the hood really clean. An Easy Clean Aluminum Grease Filter traps airborne oil to keep the air much cleaner. Any liquid is caught in a pan so that it can be drained away easily. And the filter can be quickly removed and washed to ensure optimum performance.
Breathe cleaner air
Infinite Range CombiHob – NZ84T9747VK/UR
14.2kg
Weight (Net)
830 x 211 x 515 mm
Net (WxHxD)
Built In
Model Type Install
No
Cooktop Frame
SHOW MORE SPECS
  • Weight (Net)
    14.2kg
  • Net (WxHxD)
    830 x 211 x 515 mm
Materials/Finishes
  • Model Type Install
    Built In
  • Cooktop Frame
    No
  • Control Method
    Touch Sliding
  • Display Type
    LED (RED)
Power/Ratings
  • Total Power (kW)
    7.4 kW
  • Flex Zone
    3.7 kW
  • Flex Zone Graphic Size
    189 x 220 mm
  • Qty of Power Boost
    4
  • Power Level
    9 + Boost
  • Burner - Left Front
    2.1 / 3.7 Kw
  • Burner - Left Rear
    2.1 / 3.7 Kw
  • Burner - Right Front
    2.1 / 3.7 Kw
  • Burner - Right Rear
    2.1 / 3.7 Kw
Features
  • Child Safety Lock
    Yes
  • Kitchen Timer
    Yes
  • Pause
    Yes
  • Residual Heat Indicator
    Yes
  • Safety Shutoff
    Yes
  • High Temp. Limit
    Yes
  • Small Utensil Detection
    Yes
  • Auto Pan Detection
    Yes
  • Power On/Off
    Yes
Cooktop
  • Number of Burner
    4 EA
  • Type
    Induction + Hood
Hood
  • Model Type Install
    Recirculation
  • Type of Controls
    Touch
  • Number of Extraction Speeds
    9+1
  • Motor Type
    BLDC
  • Boost Extraction
    575 ㎥/h
  • Sound Power (Max)
    73 dBA
  • Sound Power (Boost)
    73 dBA
  • Hood Filter
    Black rounded Aluminum Grease filter + Ceramic Filter
  • Energy Efficiency Class
    A+
Weights/Dimensions
  • Package (WxHxD)
    923 x 536 x 600 mm
  • Cutout (WxD)
    807 x 492 mm
  • Weight (Gross)
    37.2 kg
  • Loading Quantity (20/40ft)
    98 / 188
