22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal) 22MD4K

Product Info
Features
Specifications

22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal)

22MD4K

Key Features

4K (4096 x 2304) IPS Display
219 Pixel Per Inch
P3 99% Color Spectrum
USB-C
Built-In Speaker

Design, features and specifications subject to change without notice. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.

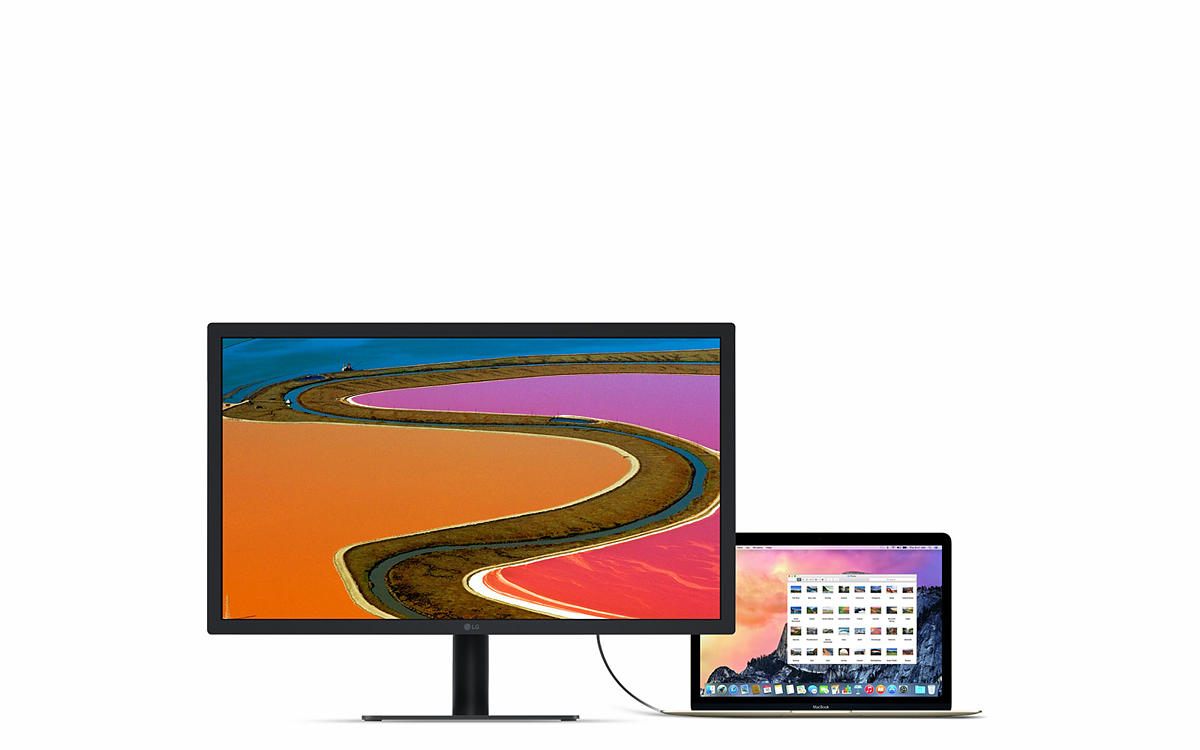

Ultra Clear 219 PPI 4K Display

At 219 pixels per inch to deliver 4K resolution (4069 x 2304 at 21.5”), the LG UltraFine™ display lets you experience the definition and detail of a Mac on a large 4K screen.

Rich Color, Better Detail

A color spectrum of P3 99% enables you to edit your high-resolution photos precisely. You will experience exceptional detail and rich color on this 4K display.

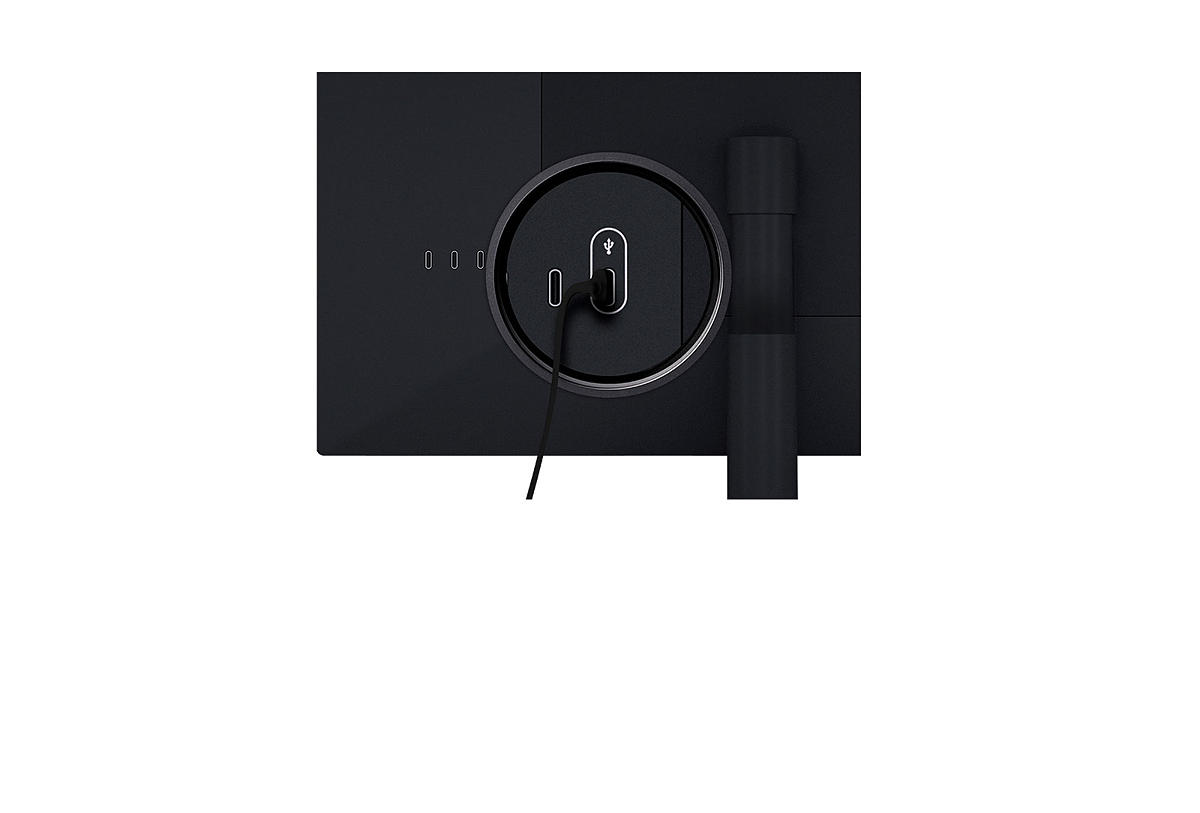

USB-C Versatility

One USB-C port can replace multiple ports for transmitting data, 4K video and power charging. It is also able to simultaneously charge mobile devices while charging your MacBook (up to 60W). In addition, three USB-C downstream ports (480Mbps) let you connect additional devices.¹

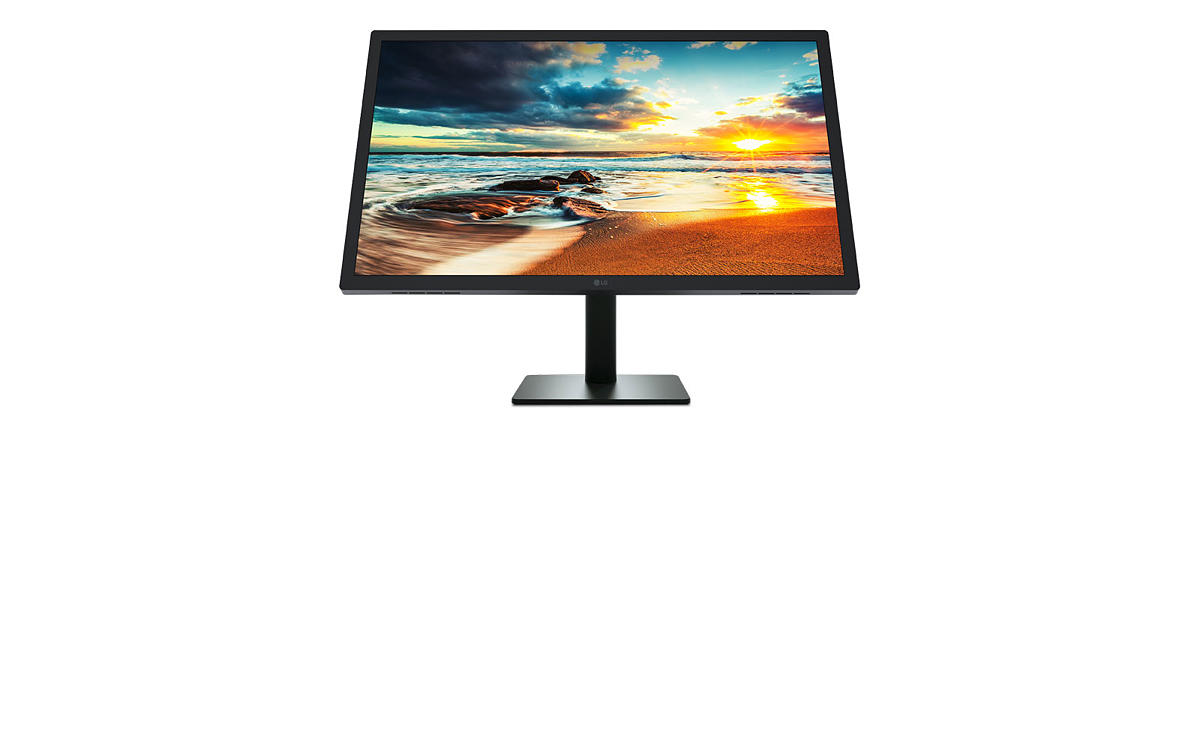

Ultimate Visibility

The LG UltraFine™ 4K display reaches a brightness of 500cd/m² and can express a wide range of color and contrast. You can experience vivid, lifelike images on a 4K screen, which provides a more natural representation.²

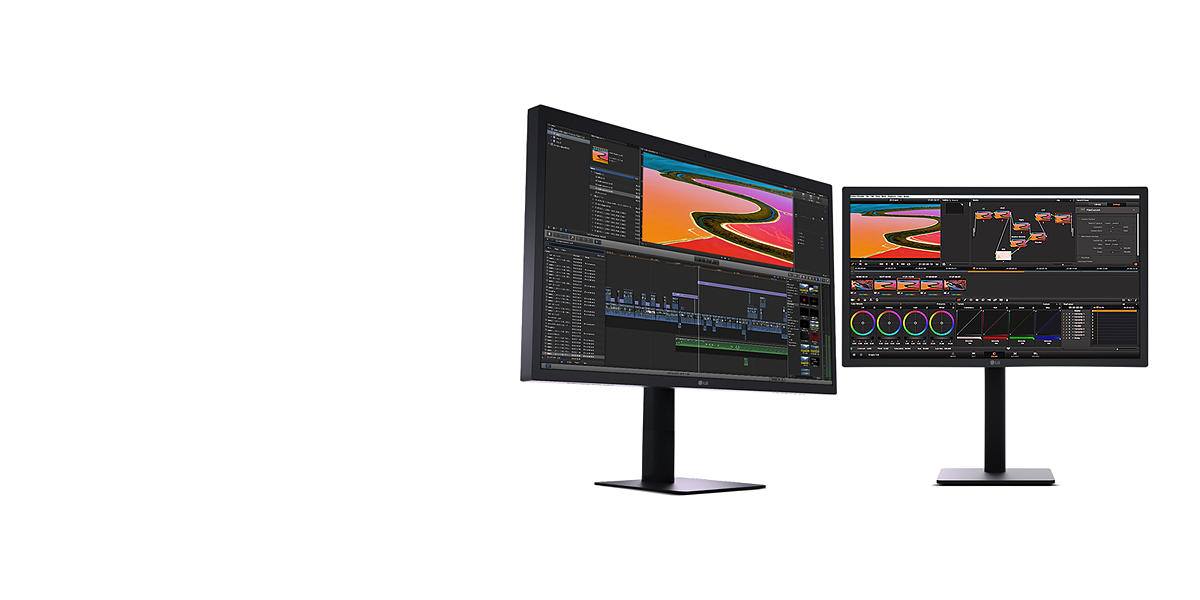

Consistent Color and Clarity

This 4K high-definition monitor with IPS minimizes color shift and delivers detailed, accurate images on the UltraFine™ 4K screen. Color is consistent from edge to edge.

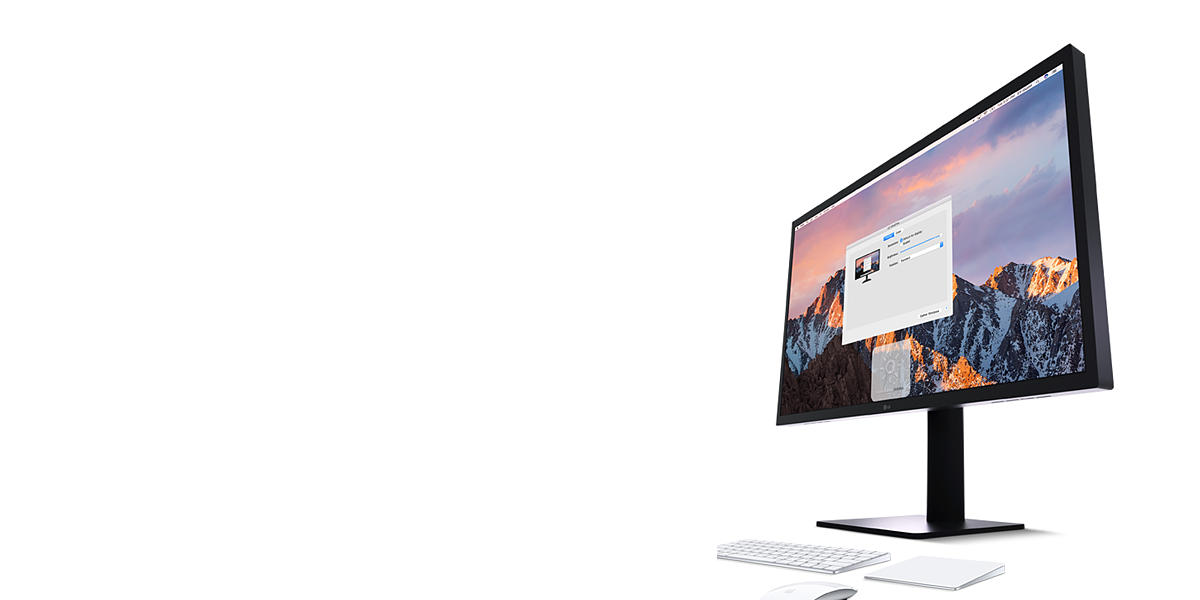

Easy Display Control with macOS

Detailed control of display settings such as brightness can be done using macOS without the need to use any physical buttons.

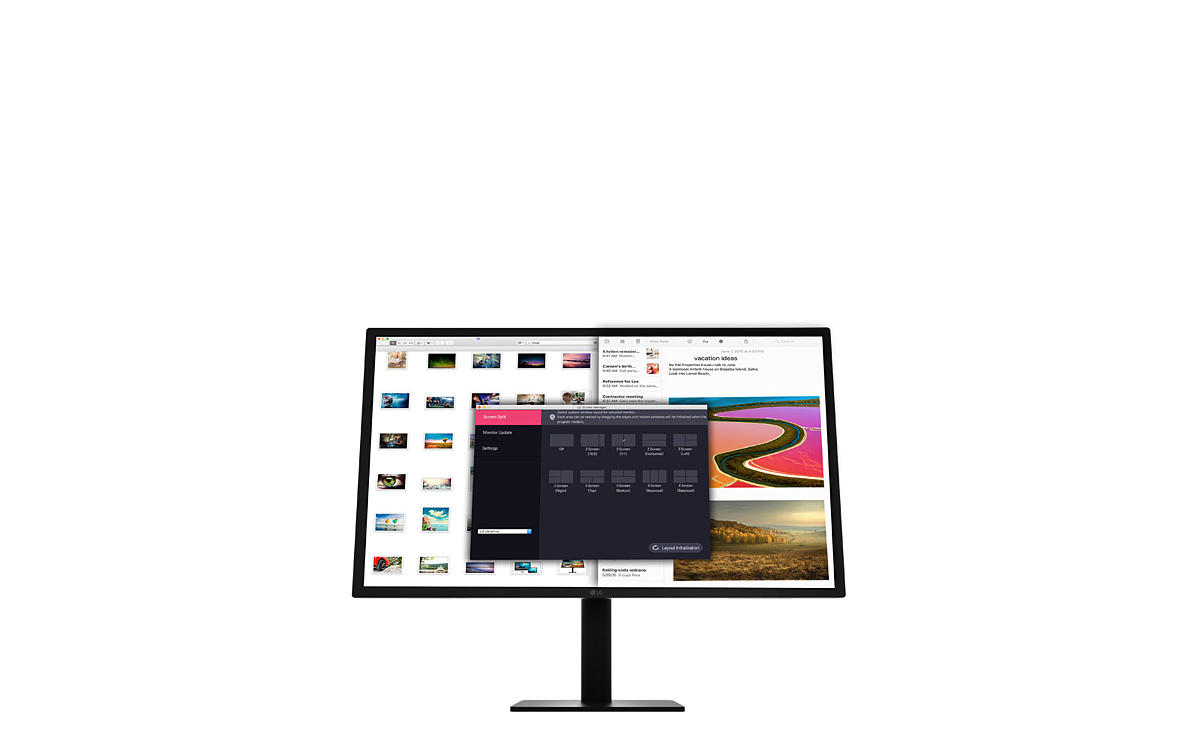

Multi-Function Screen Manager

The LG Screen Manager has been optimized for macOS to provide a variety of multi-screen options. For example, it can automatically divide the screen into two to four frames, according to users’ specific needs.

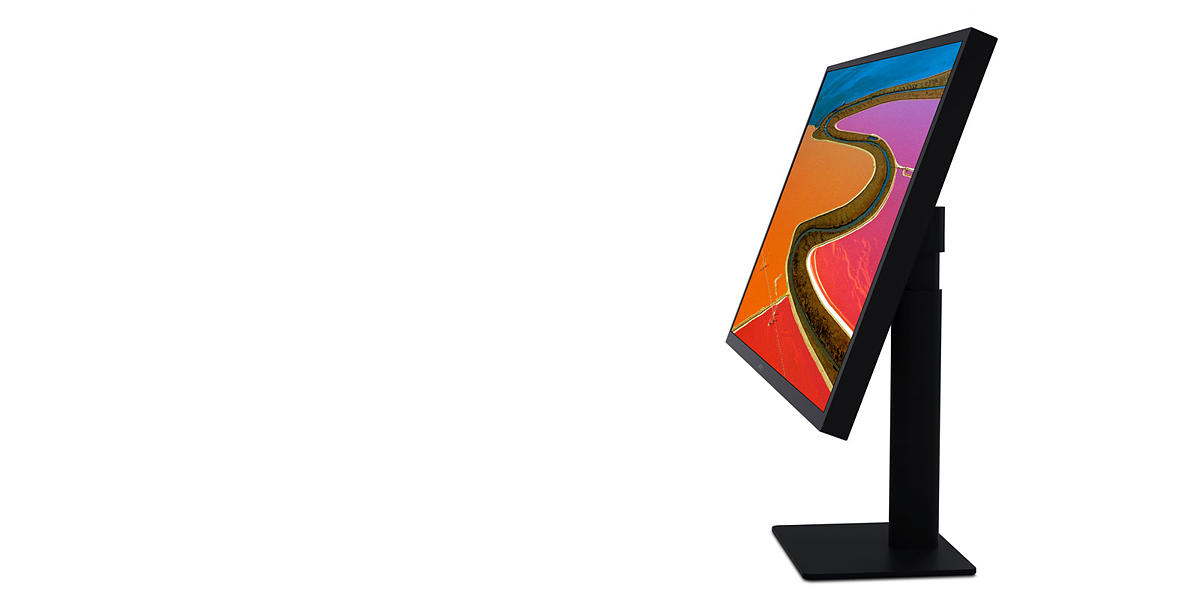

Convenient Adjustable Display Stand

LG UltraFine™ 4K displays have convenient height/tilt adjustment. Users can customize the display height to create a more personal, comfortable workstation, or easily wall-mount the display with the use of a VESA mount bracket.³

PANEL
Screen Size	21.5" Flat
Panel Type	IPS
Color Gamut (CIE 1931)	DCI-P3 99%
Color Depth (Number of Colors)	8bits, 16.7M
Pixel Pitch (mm)	0.11622 mm × 0.11622 mm
Response Time	12ms / 14ms GTG
Refresh Rate	H-Frequency: 88~143kHz V-Frequency: 48~60Hz
Aspect Ratio	16:9
Resolution	4096 x 2304
Brightness	500 nits
Contrast Ratio	1100:1
Viewing Angle	178 / 178
Surface Treatment	Anti-glare, 2H

INPUTS/OUTPUTS
USB-C	Yes (x1, PD, DP Alt. Mode, USB3.1 Gen1), UHD@60Hz

SPEAKER
Type	Stereo Speakers
Audio Output	5Wx2 77dB (Based on LG Standard)

POWER
Type	150W Built-in Power
Input	100~240V, 50/60Hz
Normal On (EPA)	120W
Power Save/Sleep Mode (Max.)	1.2W
DC Off (Max.)	0.5W

SPECIAL FEATURES
USB Up	USB-C
USB port	3 downstream (USB-C)
HDCP	HDCP1.4 / 2.2
Ambient Light Sensor	Yes
On-Screen Control (OSC)	Yes
Base Detachable	Yes (One touch release button)
Tilt (Angle)	Yes (Angle -5~25 degree)
Height (mm)	Yes (range 0~110mm)

DIMENSIONS/WEIGHT
With Stand (WxHxD)	19.90" x 15.29" x 8.66"
Without Stand (WxHxD)	19.90" x 11.78"x 1.72"
Shipping Dimensions (WxHxD)	23.74" x 19.96" x 11.38"
With Stand Weight	12.35 lbs
Without Stand Weight	8.38 lbs
Shipping Weight	20.50 lbs

CABINET / ACCESSORIES
VESA® Size (mm)	100 x 100
Power Cord	–
USB Type C to C	Yes (USB-C Passive Cable, 1.8m)
Easy Setup Guide	Yes
Guides on Using Product Functions	Yes
VESA design cover	Yes
S/W Install CD	Web Download

STANDARD
UL(cUL)	Yes
CB	Yes
FCC-B, CE	Yes
CCC, BSMI	Yes
KC	Yes
VCCI	Yes
RCM	Yes
EPA7.0	Yes
China CEL	Yes
ROHS, REACH	Yes
USB-C	Yes
