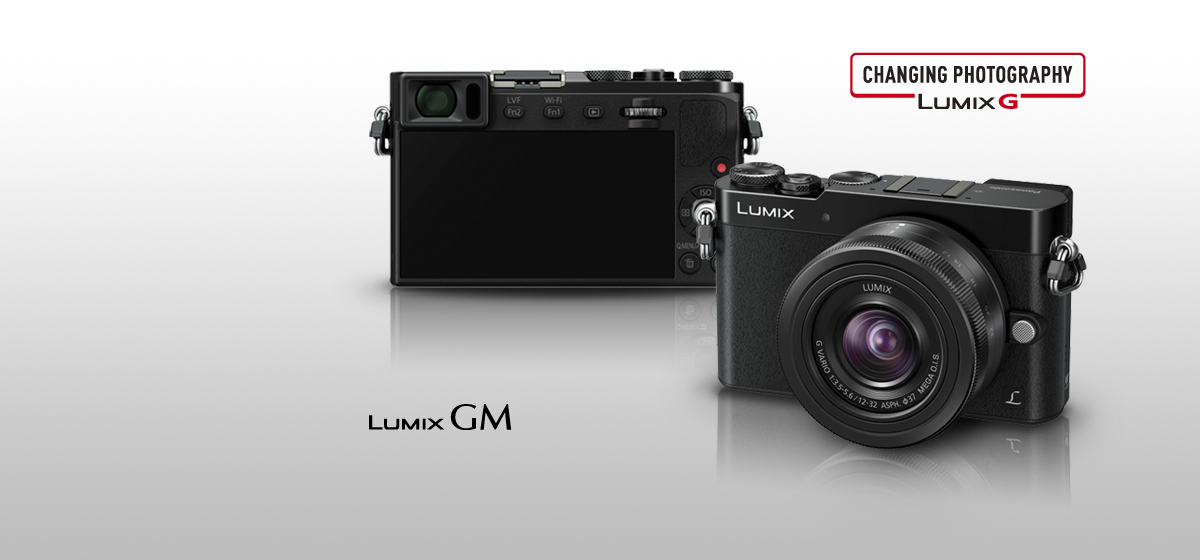

LUMIX Digital Single Lens Mirrorless Camera DMC-GM5 Red
LUMIX GM5, Our Smallest System Camera
Advanced functions are refined and condensed to express the beauty around you. Live Viewfinder concentration produces the ultimate photos. And the sophisticated design inspires your creativity. Everyday life becomes art.
LUMIX G Compact System Camera DMC-GM5 in Ultra Compact Size with LVF (Live View Finder).
Digital Live MOS Sensor
16.00 Megapixels
Ultra Compact & Lightweight Body
W98.5 x H59.5 x D36.1 mm / 211g
Live View Finder
1,166k-dot Equivalent
LUMIX Digital Single Lens Mirrorless Camera DMC-GM5 Red
LUMIX GM5, Our Smallest System Camera
Advanced functions are refined and condensed to express the beauty around you. Live Viewfinder concentration produces the ultimate photos. And the sophisticated design inspires your creativity. Everyday life becomes art.
LUMIX G Compact System Camera DMC-GM5 in Ultra Compact Size with LVF (Live View Finder).
LUMIX Digital Single Lens Mirrorless Camera DMC-GM5 Red
LUMIX GM5, Our Smallest System Camera
Advanced functions are refined and condensed to express the beauty around you. Live Viewfinder concentration produces the ultimate photos. And the sophisticated design inspires your creativity. Everyday life becomes art.
LUMIX G Compact System Camera DMC-GM5 in Ultra Compact Size with LVF (Live View Finder).
Digital Live MOS Sensor
16.00 Megapixels
Ultra Compact & Lightweight Body
W98.5 x H59.5 x D36.1 mm / 211g
Live View Finder
1,166k-dot Equivalent
Recording file format Still image
JPEG (DCF, Exif 2.3), RAW, MPO (When attaching 3D lens in Micro Four Thirds system standard)
Recording file format Motion picture
AVCHD (Audio format: Dolby Digital 2ch), MP4 (Audio format AAC 2ch)
File size(Pixels) Still Image
[4:3] 4592x3448(L) / 3232x2424(M) / 2272x1704(S) / 1824x1368 (When attaching 3D lens in Micro Four Third system standard)/[3:2] 4592x3064(L) / 3232x2160(M) / 2272x1520(S) / 1824x1216 (When attaching 3D lens in Micro Four Third system standard)/[16:9] 4592x2584(L) / 3840x2160(M) / 1920x1080(S) / 1824x1024 (When attaching 3D lens in Micro Four Third system standard)/[1:1] 3424x3424(L) / 2416x2416(M) / 1712x1712(S) / 1712x1712 (When attaching 3D lens in Micro Four Third system standard)
File size(Pixels) Motion picture*1(MP4*2:NTSC area)
[Full HD] 1920x1080 60p, 28Mbps (sensor output is 60fps)/[Full HD] 1920x1080 30p, 20Mbps (sensor output is 30fps)/[HD] 1280x720 30p, 10Mbps (sensor output is 30fps)/[VGA] 640x480 30p, 4Mbps (sensor output is 30fps)
File size(Pixels) Motion picture*1(MP4*2:PAL area)
[Full HD] 1920x1080 50p, 28Mbps (sensor output is 50fps)/[Full HD] 1920x1080 25p, 20Mbps (sensor output is 25fps)/[HD] 1280x720 25p, 10Mbps (sensor output is 25fps)/[VGA] 640x480 25p, 4Mbps (sensor output is 25fps)
File size(Pixels) Motion picture*1(AVCHD*3:NTSC area)
[Full HD] 1920x1080 60p, 28Mbps (sensor output is 60fps)/[Full HD] 1920x1080 60i, 17Mbps (sensor output is 60fps)/[Full HD] 1920x1080 60i, 24Mbps (sensor output is 30fps)/[Full HD] 1920x1080 24p, 24Mbps (sensor output is 24fps)
File size(Pixels) Motion picture*1(AVCHD*3:PAL area)
[Full HD] 1920x1080 50p, 28Mbps (sensor output is 50fps)/[Full HD] 1920x1080 50i, 17Mbps (sensor output is 50fps)/[Full HD] 1920x1080 50i, 24Mbps (sensor output is 25fps)/[Full HD] 1920x1080 24p, 24Mbps (sensor output is 24fps)
Aspect ratio
4:3, 3:2, 16:9, 1:1
Image quality
RAW, RAW+Fine, RAW+Standard, Fine, Standard/MPO+Fine / MPO+Standard (with 3D lens in Micro Four Thirds system standard)
Color Space
sRGB, AdobeRGB
Continuous recordable time (Motion picture)
AVCHD [FHD/60i, FHD/50i]: Approx. 80 min (rear monitor), 80 min (LVF) with H-FS12032/AVCHD [FHD/60i, FHD/50i]: Approx. 90 min (rear monitor), 90 min (LVF) with H-X015/AVCHD [FHD/60i, FHD/50i]: Approx. 90 min (rear monitor), 90 min (LVF) with H-FS35100
Actual recordable time (Motion picture)
AVCHD [FHD/60i, FHD/50i]: Approx. 40 min (rear monitor), 40 min (LVF) with H-FS12032/AVCHD [FHD/60i, FHD/50i]: Approx. 45 min (rear monitor), 45 min (LVF) with H-X015/AVCHD [FHD/60i, FHD/50i]: Approx. 45 min (rear monitor), 45 min (LVF) with H-FS35100
Type
Digital Single Lens Mirrorless camera
Recording media
SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard SDHC / SDXC Memory Cards)
Image sensor size
17.3 x 13.0 mm (in 4:3 aspect ratio)
Lens mount
Micro Four Thirds mount
Type
Live MOS Sensor
Total pixels
16.84 Megapixels
Camera effective pixels
16.00 Megapixels
Color filter
Primary color filter
Dust reduction system
Supersonic wave filter
WiFi
IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
NFC
No
QR Code Connection
Yes
Type
Live View Finder (1,166K dots)
Field of view
Approx. 100%
Magnification
Approx. 0.92x / 0.46x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1
Eye point
Approx. 17.5 mm from eyepiece lens
Diopter adjustment
-4.0 - +4.0 (dpt)
Eye sensor
Yes
Eye sensor adjustment
High / Low
Type
Contrast AF system
Focus mode
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
AF mode
Face/Eye Detection / Tracking / 23-Area / 1-Area / Pinpoint/(Full area touch is available)
AF detective range
EV -4 - 18 (ISO100 equivalent)
AF assist lamp
Yes
AF lock
Set the Fn button in custom menu to AF lock
Others
One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter
Light metering system
1728-zone multi-pattern sensing system
Light metering mode
Multiple / Center Weighted / Spot
Metering range
EV 0 - 18 (F2.0 lens, ISO100 equivalent)
Exposure mode
Program AE, Aperture Priority AE, Shutter Priority AE, Manual,
ISO sensitivity (Standard Output Sensitivity)
Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)/(Up to ISO3200 in motion picture recording)
Exposure compensation
1/3 EV step ±5EV (±3EV for motion picture)
AE lock
Set the Fn button in custom menu to AE lock
AE bracket
3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. ±3 EV, single/burst
White balance
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Color temperature setting
White balance adjustment
Blue/Amber bias, Magenta/Green bias
Color temperature setting
2500-10000K in 100K
White balance bracket
3 exposures in blue/amber axis or in magenta/green axis
PANORAMA SHOT
Yes
Type
Electronically-controll focal-plane shutter / Electronic shutter
Shutter speed
Still image: Time (Max. 60 second), 1/16,000 - 60/Motion picture: 1/16,000 - 1/25
Self timer
10sec, 3 images / 2sec / 10sec
Still image
Clear Portrait / Silky Skin / Backlit Softness / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Glittering Illuminations / Handheld Night Shot / Clear Night Portrait / Soft Image of a Flower / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome
Motion picture
Clear Portrait / Silky Skin / Backlit Softness / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Handheld Night Shot / Clear Night Portrait / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome
Burst speed
Mechanical shutter: H: 5.8 frames/sec (with AFS), 5 frames/sec (with AFC, in 1-area-focusing AF mode), M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)/Electronic shutter: SH: 40 frames/sec, H: 10 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
7 images (When there are RAW files with the particular speed.)/Unlimited consecutive shooting (Except for the SH mode. When there are no RAW files. Depending on the capacity of the memory card.)/39 images (SH mode. When there are no RAW files.)/(depending on memory card size, battery power, picture size, and compression)
Flash type
TTL external flash (Bundled), GN10.0 equivalent (ISO 200・m) , GN7.0 equivalent (ISO 100・m)
Flash Mode
Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ only.
Synchronization speed
Less than 1/50 second
Flash output adjustment
1/3EV step ±3EV
Flash synchronization
1st. Curtain Sync, 2nd Curtain Sync.
Fn1, Fn2, Fn3, Fn4, Fn5, Fn6, Fn7
Wi-Fi / LVF/Monitor Switch / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / Cursor Button Lock / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Highlight Shadow / .Dynamic / i.Resolution / HDR / Shutter Type / Flash Mode / Flash Adjust / Ex. Tele Conv. / Digital Zoom / Stabilizer / Sensitivity / White Balance / AF Mode/MF / Drive Mode / Snap Movie / Motion Pic. Set / Picture Mode / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Rec Area / Step Zoom / Zoom Speed / Touch Panel / Restore to Default
Type
TFT LCD monitor with static touch control
Monitor size
3-inch / 16:9 aspect / Wide viewing angle
Pixels
Approx. 921k dots
Monitor adjustment
Brightness (13 levels), Contrast (13 levels), Saturation (13 levels), Red-Green (21 levels), Blue-Yellow (21 levels)
Still image
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome / Silky Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Color / Sunshine
Motion picture
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color
Digital zoom
2x, 4x
Extra Tele Conversion
Still image: Max. 2.4x (Aspect ratio sets at 16:9. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.)/Motion picture: 2.4x (FHD), 3.6x (HD), 4.8x (VGA)
Other functions
Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)
Direction Detection Function
Yes
Still image and motion picture
Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom
Exposure Mode
Program AE / Aperture-Priority / Sutter-Priority / Manual Exposure
Playback function
Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only / 3D / Category Selection / Favorite, duration & effect is selectable), Playback Mode (Normal / Picture / Video / 3D Play / Category / Favorite), Location Logging, Clear Retouch, Title Edit, Text Stamp, Video Divide, Time Lapse Video, Stop Motion Video, Resize, Cropping, Rotate, Rotation Display, Favorite, DPOF Print Set, Protect, Face Recognition Edit, Picture Sort, Delete Comfirmation
Flicker reduction
[1/50] / [1/60] / [1/100] / [1/120] / OFF
Protection
Single / Multi, Cancel
Erase
Single / Multi / All / Except Favorite
Direct Print
PictBridge compatible
HDMI
microHDMI TypeD / VIERA Link/Video: Auto / 1080p / 1080i / 720p / 480p (576p in PAL system)/Audio: Stereo
USB
USB 2.0 High Speed Multi
Audio video output
Monaural Type, NTSC/PAL, NTSC only for North America/*Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market.
Microphone
Stereo, Wind-cut: OFF / Low / Standard / High / AUTO
Speaker
Monaural
OSD language
Japanese, English, German, French, Italian, Spanish
Battery
Li-ion Battery Pack (7.2V, 680mAh, 4.9Wh) (Included)/Battery Charger
Battery life (CIPA standard)
Approx. 210 images (rear monitor), 220 images (LVF) with H-FS12032/Approx. 210 images (rear monitor), 220 images (LVF) with H-X015/Approx. 210 images (rear monitor), 220 images (LVF) with H-FS35100
Dimensions (W x H x D)
98.5 x 59.5 x 36.1 mm / 3.88 x 2.34 x 1.42 inch (excluding protrusions)
Weight
Approx. 211g / 0.46 lb (SD card, Battery, Body)/Approx. 180g / 0.40 lb (Body only)/Approx. 281g / 0.62 lb (SD card, Battery, H-FS12032 lens included)/Approx. 326g / 0.72 lb (SD card, Battery, H-X015 lens included)/Approx. 346g / 0.76 lb (SD card, Battery, H-FS35100 lens included)
Operating temperature
0℃ to 40℃ (32°F to 104°F)
Operating humidity
10%RH to 80％RH
Software
PHOTOfunSTUDIO 9.6 PE (Windows XP / Vista / 7 / 8)/SILKYPIX® Developer Studio 4.2 SE (Windows XP / Vista / 7 / 8, Mac OS X v10.5 / v10.6 / v10.7 / v10.8)/LoiLoScope (trial version) (Windows XP / Vista / 7 / 8)
Standard accessories
DMC-GM5K Kit/Flash, Flash Storage Bag, Hot Shoe Cover, Battery Pack, Battery Charger, USB Connection Cable, Shoulder Strap, DVD-ROM, AC Cable*, Lens Cap/* Depends on the country or region.
Lens Name
LUMIX G VARIO 12-32mm / F3.5-5.6 ASPH. / MEGA O.I.S.
General Filter Size
37mm / 1.5in
General Max. Diameter
φ55.5mm / 2.2in
General Overall Length
Approx. 24mm / 0.94in (from the tip of the lens to the base side of the lens mount)
General Weight [g]
Approx. 70g (excluding lens cap, lens rear cap )
General Weight [oz]
Approx. 2.47oz (excluding lens cap, lens rear cap )
Lens Construction
8 elements in 7 groups (3 aspherical lenses, 1 ED lens)
Mount
Micro Four Thirds mount
Optical Image Stabilizer
Yes (MEGA O.I.S.)
Focal Length
f=12-32mm (35mm camera equivalent 24-64mm)
Aperture Type
7 diaphragm blades / Circular aperture diaphragm
Maximum Aperture
F3.5(Wide) - F5.6(Tele)
Minimum Aperture
F22
Closest Focusing Distance
0.20m/0.66ft (at focal lenghts 12-20mm) / 0.30m/0.98ft (at focal lenghts 21-32mm)
Maximum magnification
Approx. 0.13x / 0.26x (35mm camera equivalent)
Diagonal Angle of View
84°(Wide) to 37°(TELE)
