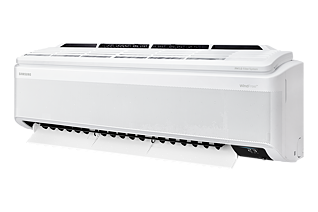

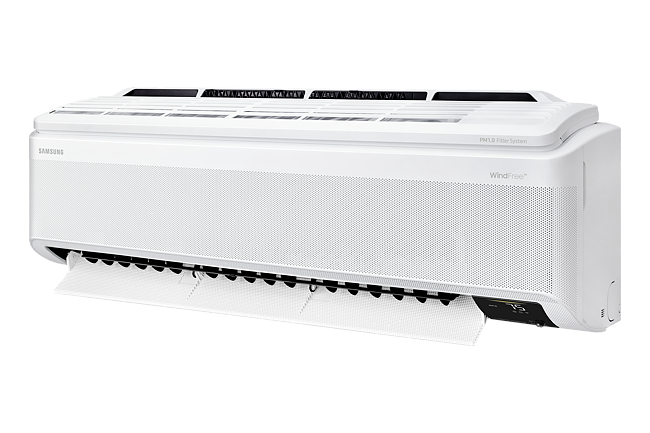

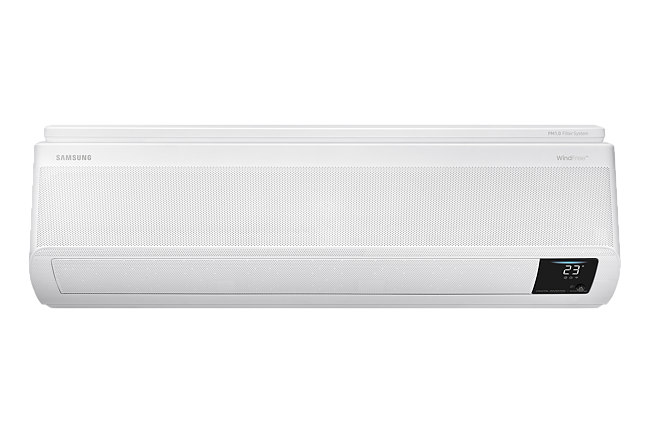

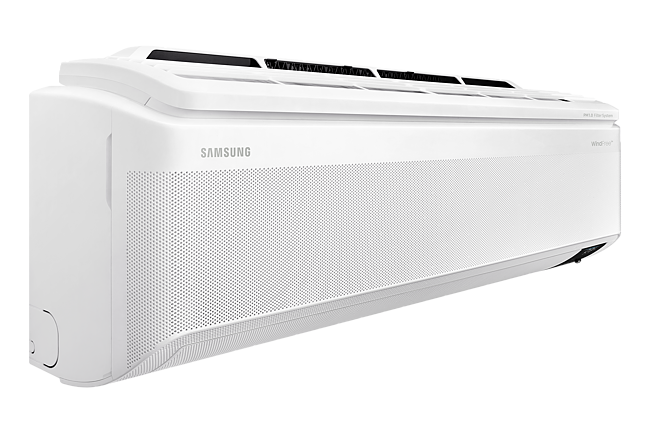

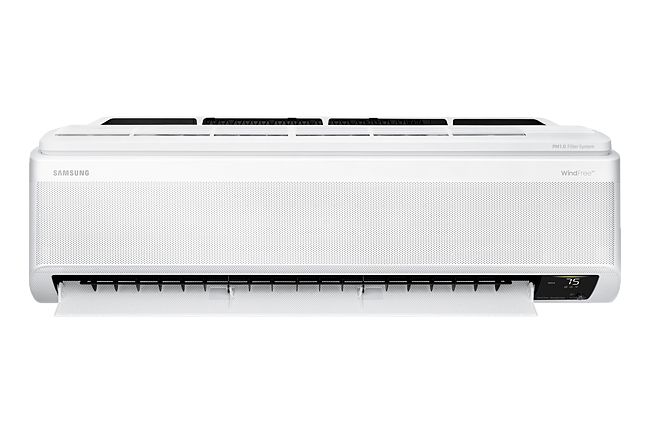

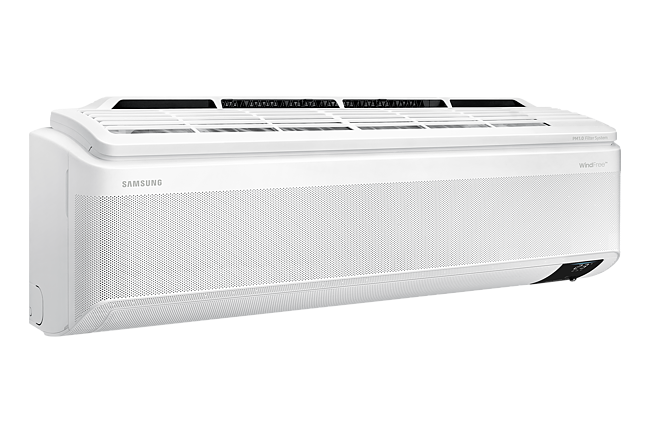

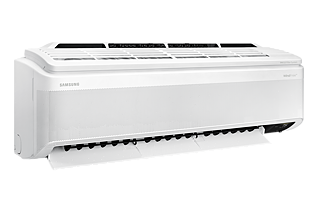

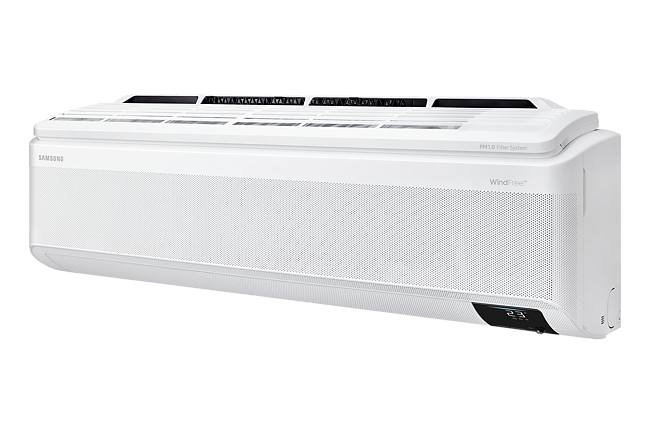

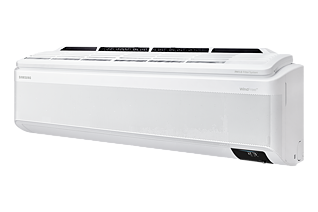

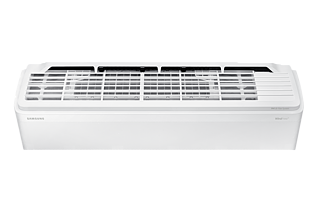

AR9500T Wall-mount AC with Windfree TM and AI technology, 24000 BTU/h

Image Gallery
Features
Specifications

» «

» «

WindFree™ Cooling

AI Auto Cooling

Wind-Free™ Good Sleep

Motion Detect Sensor

Stay comfortably cool without feeling cold

WindFree™ Cooling

Stay comfortable cool with WindFree™ Cooling. It gently and quietly disperses air through 23,000 micro air holes, so there is no unpleasant feeling of cold wind on your skin. Its advanced airflow also cools a wider and larger area more evenly. And it uses 77% less energy than Fast Cooling***.

Stay comfortably cool without feeling cold

* ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) defines “Still Air” as air currents at speeds below 0.15m/s which lacks the presence of cold drafts.
** Tested on the AR12TXCAAWKNEU model. WindFree™ mode generates only 23dB of noise, compared to 26dB with the Samsung conventional model.
*** Tested on the AR07T9170HA3 model, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode.

Reduces energy use by 77%* to save money

WindFree™ Cooling (Energy Saving)

Save money every day with highly energy-efficient WindFree™ Cooling. When operating in WindFree™ mode, the outdoor unit consumes minimal power – using up to 77% less electricity compared to the Fast Cooling mode*. So you can stay comfortably cool without worrying about your electricity bills.

* Tested on the AR07T9170HA3 model, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode.

Reduces energy use by 77%* to save money

Enjoy a more intelligent way of living

AI Auto Cooling

Experience an intelligent way of living with AI Auto Cooling*. It automatically optimizes the various modes by analyzing the room conditions and usage patterns**. Based on your preferred temperature, it automatically switches to the most appropriate mode to maintain the optimal conditions.

* A Wi-Fi connection and a Samsung account are required.
** Stores user data, preferences and usage patterns to suggest the most useful options.

Reduces noise and energy use by 73%*

Digital Inverter Boost

Save money every day with highly energy-efficient Digital Inverter Boost technology. It maintains the desired temperature with less fluctuation. It also has neodymium magnets and a Twin Tube Muffler, so it works efficiently, quietly and lasts much longer. And it reduces energy usage by up to 73%*.

* Tested on the AR09TXCAAWKNEU model compared with the Samsung conventional model AQ09TSLXEA.

Sleep much better throughout the night

WindFree™ Good Sleep

The WindFree™ Good Sleep mode creates the ideal climate for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™ Cooling helps you fall asleep fast, sleep deeply and comfortably, and wake up feeling fully refreshed.

Quickly captures even ultrafine dust

PM1.0 Filter

Protect yourself from inhaling bacteria and tiny particles. A PM1.0 Filter sterilizes over 99% of bacteria* that gets stuck on the filter surface. It works twice as fast as a PM2.5 Filter**. Colored lights also show the current air quality. And the washable filter is cost-effective to maintain.

* Based on independent testing by Intertek. Removes 99.9% of Staphylococcus aureus and Escherichia coli collected on the electrostatic precipitator filter. Results may vary depending on environmental factors and individual use.
** Removes 50% of 0.3µm size dust particles in a 30m² indoor area with 10 minutes operation per hour. Tested on AR13TYAAAWKNST model. Results may vary depending on environmental factors and individual use.
*** It can only be set using a mobile App.
**** The PM 1.0 Filter line-up may differ between regions.

Automatically cools more efficiently

Motion Detect Sensor

Cool your home efficiently whether you are there or not. The Motion Detect Sensor detects if there is no movement after 20 minutes* and will automatically switch to the WindFree™ mode to save energy. You can also set it not to blow air towards you, or to follow you wherever you move.
Automatically cools more efficiently

Motion Detect Sensor

Cool your home efficiently whether you are there or not. The Motion Detect Sensor detects if there is no movement after 20 minutes* and will automatically switch to the WindFree™ mode to save energy. You can also set it not to blow air towards you, or to follow you wherever you move.

Prev Next

* The Motion Detect Sensor will start detecting the absence of movement after a minimum of 5 minutes and up to a maximum of 60 minutes.

Designed to cool faster, wider & farther

Fast Cooling

Cool rooms quickly from corner to corner, so you’re always comfortable. Digital Inverter Boost technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters.

Designed to cool faster, wider & farther

* Tested on the AR12TXCAAWKEU model compared with the Samsung conventional model AQ12EASER.
** Tested on the AR24TXFCAWKNEU model.

Remotely control it anytime, anywhere

SmartThings

Control the temperature in your home anytime and anywhere. Using the SmartThings App* you can remotely control and monitor the air conditioner with just a touch. Or simply tell artificial intelligence (AI) system* what you want** and it does it. It even suggests the best settings.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
** Voice control supported in English (US, UK, Indian), Chinese, Korean, French, German, Italian and Spanish. Portuguese will also be supported by the end of 2019.

Simply cleans itself – automatically

Auto Clean (3 Steps)

Keep the inside of your air conditioner hygienic by doing nothing! After it has been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes. So it prevents the build-up of bacteria and odors.

Enjoy a quieter & more tranquil home

Less Noise

Cool your living spaces with less noise, so it doesn’t disturb you. The compressor creates a powerful airflow, but works really quietly as it includes a Twin Tube Muffler. It reduces the refrigerant flow noise when operating at high speed and minimizes ambient noise during low speed operation.

* Based on testing conducted in an internal laboratory. Generates a 40% reduction in the 1kHz noise band, which is the weakest level of sound that humans are sensitive to.

Easy to clean anti-bacterial filter

Easy Filter Plus

Keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants*.

* Tested in Korea test lab. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.

Stable and durable in harsh conditions

Triple Protector Plus

Enjoy a long-lasting performance in challenging environments. Triple Protector Plus technology prevents damage from power surges and fluctuating electrical currents. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.

Better Heat Exchanger performance

DuraFin™

Enhance the performance and efficiency of the Heat Exchanger using the DuraFin. It is made of a much denser material and is thicker in design. Its improved coating also has more corrosion resistance. So it passes the accelerated Sea Water Acetic Acid Test (SWAAT) for corrosion over 100 days*.

* Based on the AR13TYHYBWKNST model compared with the Samsung conventional model AR18JRFNFWK.

Prevents corrosion for lasting cooling

DuraFin™ Plus

Stay comfortably cool for much longer. The DuraFin™ Plus is made of corrosion-resistant material to protect the condenser from rusting, which helps to maintain the optimal performance of the Heat Exchanger. Its superb corrosion-resistance was proven using the Salt Spray Test (SST) for 480 hours*.

* Tested on the AR12TXFCAWKNEU model.

Saves energy & money, cools effectively

ECO Mode

Save energy, but still stay cool. ECO mode uses less compressor capacity compared to Normal mode, which reduces energy consumption*. It lets you cool more efficiently when it’s not too hot outside or just save energy and money at any time, so you don’t have to worry about the electricity bills.

* Tested on the AR07T9170HA3 compared with Samsung conventional models, measuring the accumulated power consumption of Fast Cooling mode vs. ECO mode.

Wash outdirt & dust inside witha press

Freeze Wash

Maintain the optimum performance with the push of a button. Freeze Wash quickly freezes the Heat Exchanger and then defrosts the ice. So it is washed in water, which washes away dirt and 90% of microorganisms*. Finally, it dries up any moisture left. And it alerts you when it is time for a clean**.

* Tested by intertek. Wash away 90% of the Staphylococcus aureus ATCC 6538 and Escherichia coli ATCC 8739 bacteria
** Only available on certain models that have Wi-Fi connectivity.

Lasting protection, optimal performance

Durafin™ Ultra

Safeguard the Heat Exchanger from damaging corrosion. The Durafin™ Ultra has an anti-corrosive layer and a hydrophilic layer that protect the Heat Exchanger from rust. Its superb corrosion-resistance was proven in a Salt Spray Test (SST)*.

* Based on testing by a third party lab in accordance with ASTM B117, an official test method. For more details, please contact Samsung’s technical professionals.
** Based on testing by a third party lab, applying the actual pressure of refrigerant for 1 minute, after a Salt Spray Test (SST) of over 2,280 hours.

Wide airflow with 4wayauto swing

4way Swing

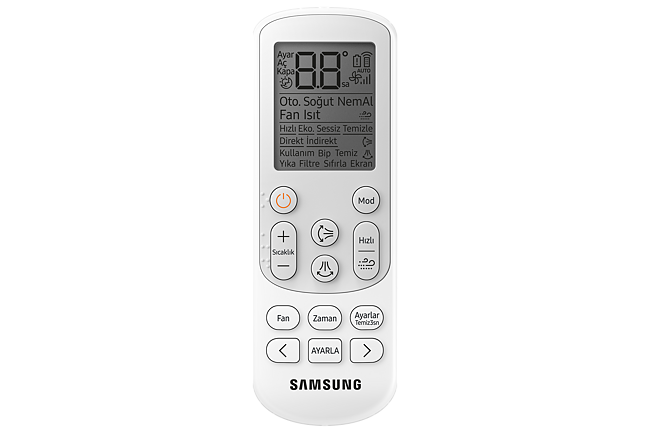

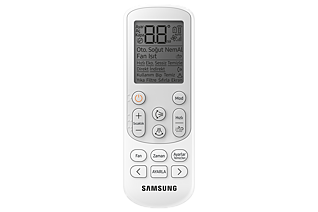

Control the wind direction Up/Down, Left/Right using remote controller. Control the wind to your desired location.

AR9500T Wall-mount AC with Windfree TM and AI technology, 24000 BTU/h

22008

Capacity (Cooling, Btu/hr)

6.45

Capacity (Cooling, kW)

3.23

EER (Cooling, W/W)

880x638x310

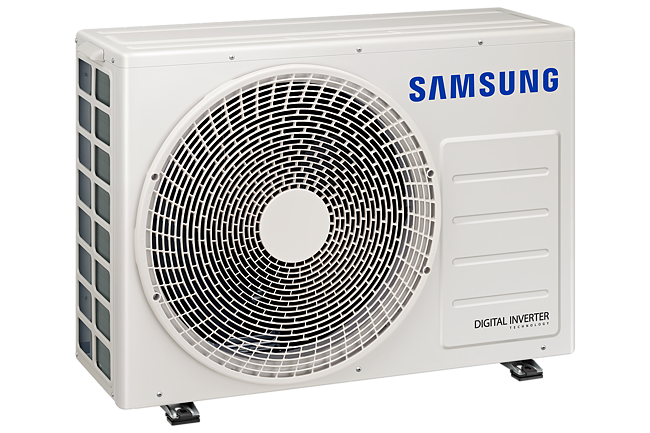

Net Dimension (Outdoor, WxHxD, mm)

SHOW MORE SPECS

Capacity (Cooling, Btu/hr)

22008
Capacity (Cooling, kW)

6.45
EER (Cooling, W/W)

3.23
Net Dimension (Outdoor, WxHxD, mm)

880x638x310

Capacity

Capacity (Heating, Btu/hr)

22008
Capacity (Cooling, Min - Max, Btu/hr)

4,777 ~ 26,956
Capacity (Heating, Min - Max, Btu/hr)

4,095 ~ 30,368
Capacity (Heating, kW)

6.45
Capacity (Cooling, Min - Max, kW)

1.4 ~ 7.9
Capacity (Heating, Min - Max, kW)

1.2 ~ 8.9

Energy Efficiency

COP (Heating, W/W)

3.41
EER (Cooling, Btu/hW)

11
COP (Heating, Btu/hW)

11.64
Energy Efficiency Class for cooling (Grade)

A

Noise Level

Noise Level (Indoor, High/Low, dBA)

44 / 28
Noise Level (Outdoor, High/Low, dBA)

54

Electrical Data

Power Source(Φ/V/Hz)

1 / 220-240~/50
Power Consumption(Cooling, W)

2000
Power Consumption(Heating, W)

1890
Operating Current(Cooling, A)

9.2
Operating Current(Heating, A)

8.5

Physical specification

Gross Dimension (Indoor, WxHxD, mm)

1115x290x410
Gross Dimension (Outdoor, WxHxD, mm)

1023x724x413
Net Dimension (Indoor, WxHxD, mm)

1055x345x215
Gross Weight (Indoor, kg)

15.1
Gross Weight (Outdoor, kg)

45.8
Net Weight (Indoor, kg)

13.3
Net Weight (Outdoor, kg)

42.7
Loading Quantity (20/40/40Hft without Pipe)

64 / 135 / 151

Technical Information

Piping Length (Max, m)

30
Piping Height (Max, m)

15
SVC Valve (Liquid (ODxL))

6.35
SVC Valve (Gas (ODxL))

15.88
Moisture Removal (l/hr)

2.5
Air Circulation (Cooling, ㎥/min)

17.1
Refrigerant (Type)

R410A
Refrigerant (Charging, kg)

1.40
Refrigerant (Charging, tCO2e)

2.92
Low Ambient (Cooling, ℃)

-10 ~ 46
Low Ambient (Heating, ℃)

-15 ~ 24
Outdoor Unit (Compressor Type)

BLDC
Outdoor Unit (Anti-Corrosion Fin)

Yes

Air Flow

WindFree Cooling

Yes
Air Direction Control (Up/Down)

Auto
Air Direction Control (Left/Right)

Auto
Air Flow Control Step (Cool/Fan)

5/4

Air Purification

PM 1.0 Filter

Yes
Tri Care Filter

No
Easy Filter Plus (Anti-Bacteria)

No
Auto Clean (Self Cleaning)

Yes

Convenience

SmartThings

Yes
AI Auto Cooling

Yes
Motion Detect Sensor

Yes
Filter Cleaning Indicatior

Yes
Indoor Temp. Display

Yes
Display On/Off

Yes
Beep On/Off

Yes
24-Hour Timer

Yes
Auto Changeover

Yes
Auto Restart

Yes

Operating Mode

Auto Mode

Yes
Fast Cool

Yes
Good Sleep

Yes
Eco Mode

Yes
Dehumidification

Yes
Fan Mode

Yes
Quiet

Yes

Smart

WiFi Embedded

Yes

App Connectivity

SmartThings App Support

Yes
