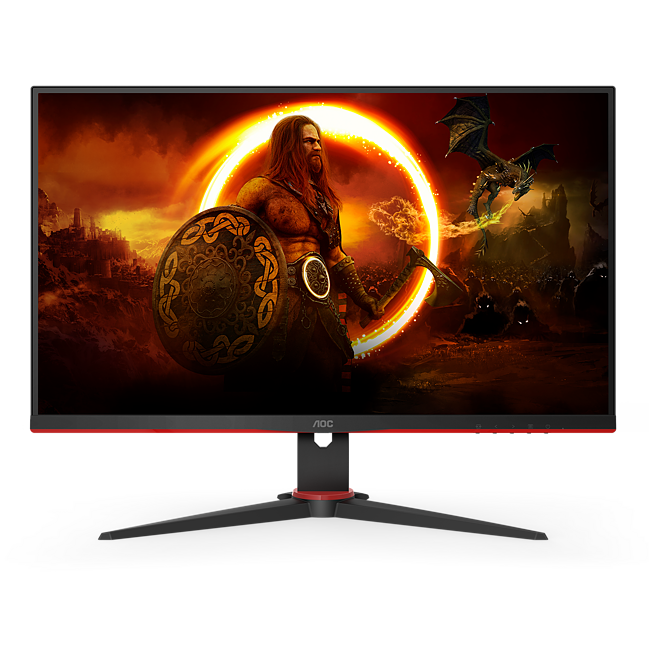

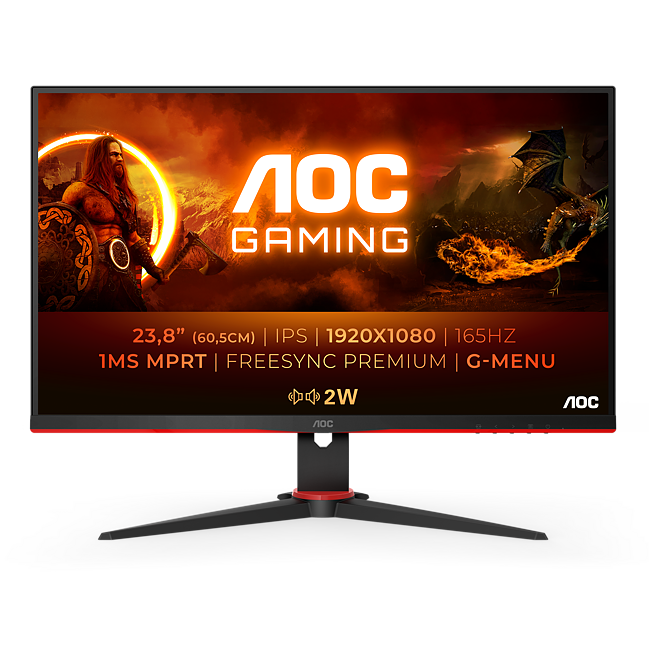

24G2SPAE/BK

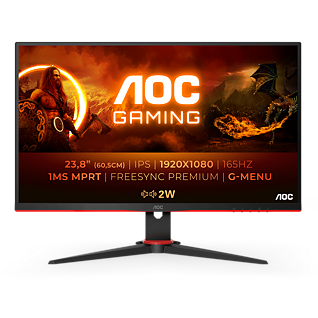

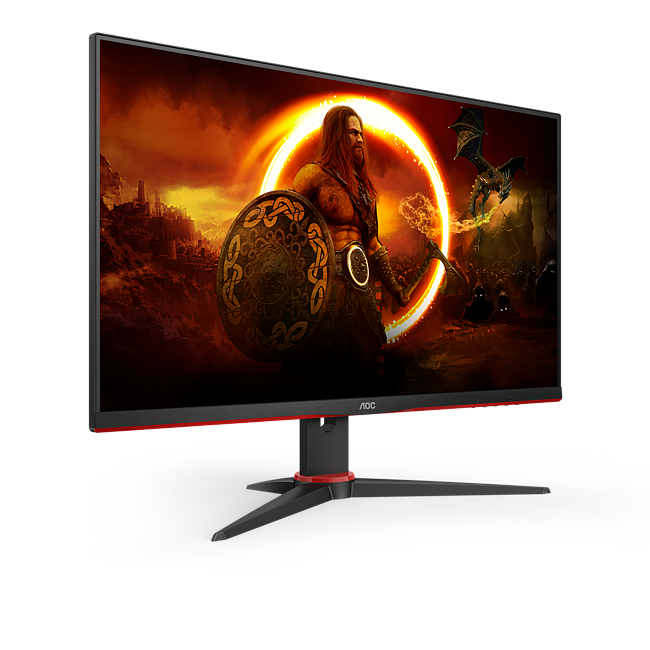

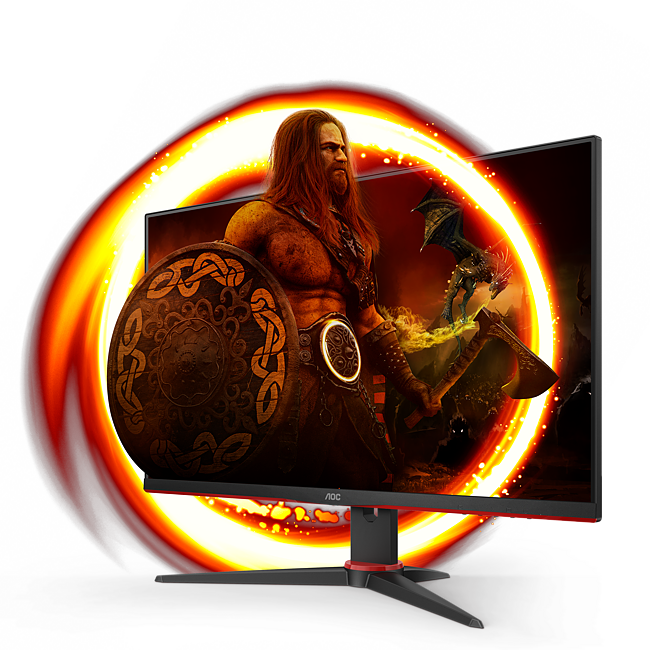

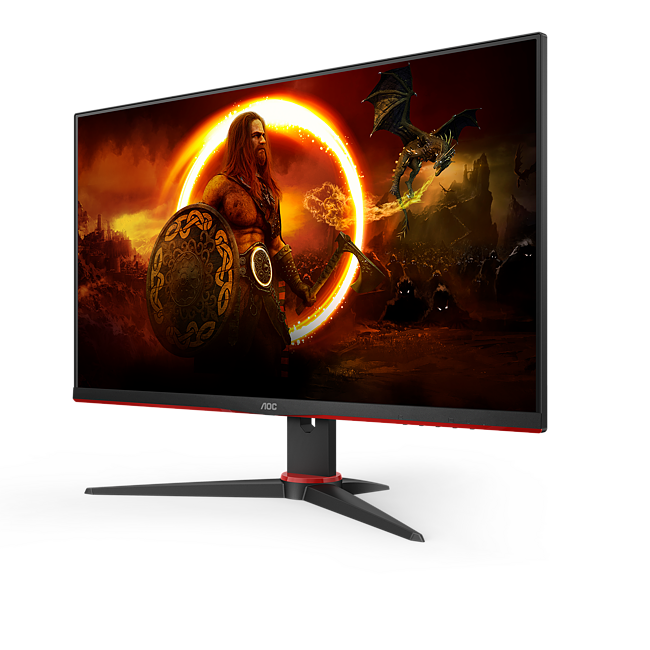

23,8" gaming monitor with 165Hz refresh rate, 1ms MPRT response time, IPS panel and Adaptive Sync

The 24G2SPAE/BK is our 23,8" model for the gamer who doesn’t want to forgo comfort for high performance. It also offers 1080p Full High Definition (FHD), low input lag, IPS panels, 2W stereo speakers and a wide colour range.

IPS Panel

IPS panel ensures an excellent viewing experience with lifelike yet brilliant and accurate colours. Colours look consistent no matter from which angle you look at the display

165Hz Refresh Rate

A 165Hz refresh rate, well over twice the industry standard of 60Hz, makes games run smooth as silk. Realize the potential in your graphics card. Forget screen tearing and forget motion blur. Feel your reflexes become one with the action. Never look back.

Low Input Lag

Unleash your reflexes by switching to the AOC Low Input Lag mode. Forget graphical frills: this mode rewires the monitor in favour of raw response time, giving the ultimate edge in hair trigger stand offs.

6 Games Mode

Tailor your display to the game with a click of a button. Switch settings between in-built presets for FPS, racing, or RTS games, or customise your own ideal conditions and save them. The AOC Settings KeyPad makes switching profiles or adjusting features quick and easy.

AOC Game Color and Shadow control

Bring the battle out of the shadows with AOC Shadow Control and AOC Game Color! Adjust grey levels for better picture detail and brighten dark areas or sink them back into blackness on the fly, without affecting the rest of the display.

GMENU

AOC G-Menu is a free tool that you can install on your PC to have complete customization paired with maximum convenience.

Technical Specifications

Display information

Screen size (inch)	23,8
Screen size (cm)	60
Flat / Curved	Flat
Panel treatment	Antiglare (AG)
Pixels per Inch	93
Panel resolution	1920x1080
Aspect ratio	16:9
Panel type	IPS
Backlight type	WLED
Max Refresh rate	165 Hz
Response time GtG	4 ms
Response time MPRT	1 ms
Static contrast ratio	1000:1
Dynamic contrast ratio	80M:1
Viewing angle (CR10)	178/178
Display colours	16.7 Million

Video features

Sync range	48-165
Digital Signal Frequency Vertical	VGA/HDMI1.4: 48-144Hz / DP1.2: 48-165Hz
Digital Signal Frequency Horizontal	VGA/HDMI1.4: 30 -160KHz / DP1.2: 30 -200KHz
Blue Light Technology	Low Blue Light
Colour space (sRGB) CIE 1931 %	125
Flicker-Free	Flicker Free

Cabinet information

Bezel type (front)	3-sided frameless
Bezel Colour (front)	Black, Red
Bezel finishing (front)	Matt
Cabinet colour (backside)	Black, Red
Cabinet finishing (backside)	Matt
Removable stand	True
Speakers	True
Speaker power	2 W x 2
Kensington Lock	True
Vesa wallmount	100x100

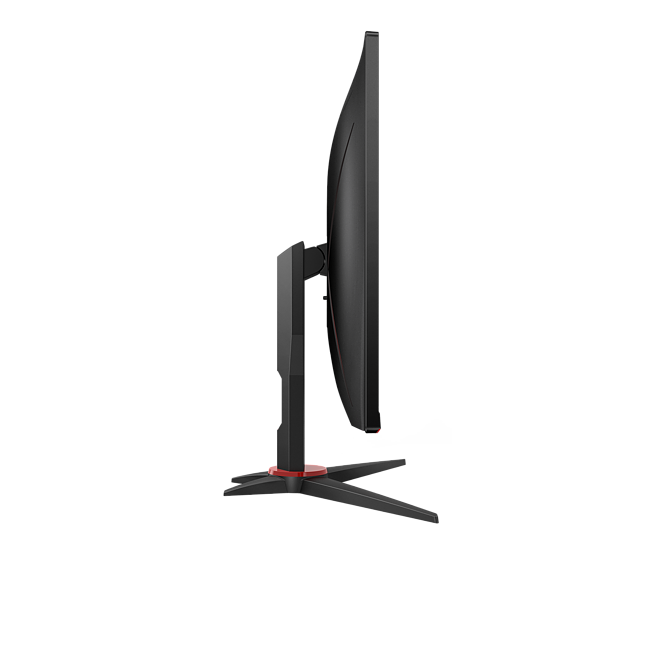

Ergonomic information

Tilt

-5/23

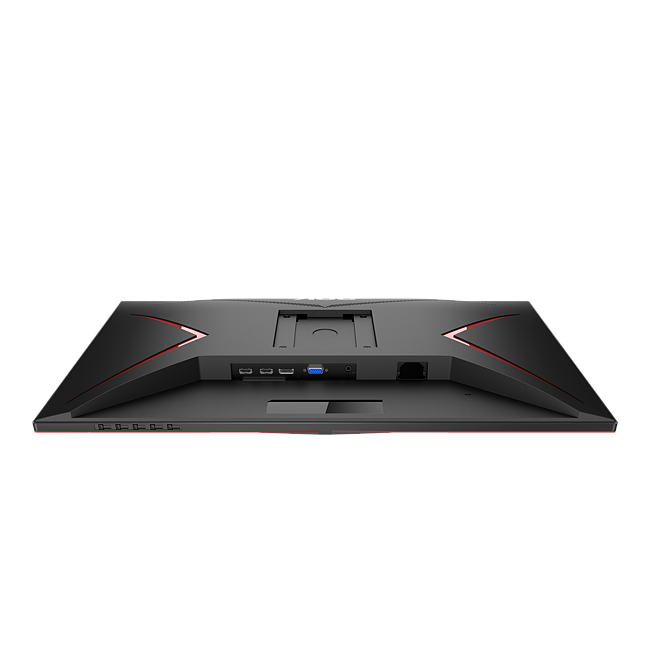

Connectivity information

HDMI	HDMI 1.4 x 2
DisplayPort	DisplayPort 1.2 x 1
Audio Output	Headphone out (3.5mm)
Audio Input	True
D-SUB (VGA)	1x

Sustainability

REACH compliant	True
RoHs compliant	True

Power consumption

Power supply	Internal
Power consumption on (typical) in watts	22
Power consumption standby in watts	0,3
Power consumption off in watts	0,3
Energy class	F

Regulatory compliance

CB	True
CE	True
TUV-Bauart-Mark	True
ISO 9241-307	True
EAC	True
FCC	True
Microsoft WHQL	True
Pixel policy	ISO 9241-307

Product dimensions

Product dimensions incl. base (WxHxD) mm	539.05Wx421.0Hx227.4D mm
Product dimensions excl. base (WxHxD) mm	539.05Wx322.1Hx47.2 D mm
Packaging dimensions (WxHxD) mm	605(W)184(D)492H mm
Gross weight incl. package (in kg)	5,65
Net weight excl. package (in kg)	3,75

What's in the box

HDMI cable	1.8
Displayport cable	1.8
Power Cable	True

Gaming features

Low Input Lag	True
Game Colour	True
Shadow Control	True
Motion Blur Reduction	True
Crosshair / Dial Point	True
Frame Counter	True
Good for Console Gaming	True
Console Compatibility	1920x1080@120Hz

Maximum resolution by connector

Optimal Resolution VGA	1920x1080@144Hz
Optimal Resolution DP	1920x1080@165Hz
Optimal Resolution HDMI	1920x1080@144Hz
