Triangle Wall-mount Air Conditioner 8-Pole Inverter 1.0 HP

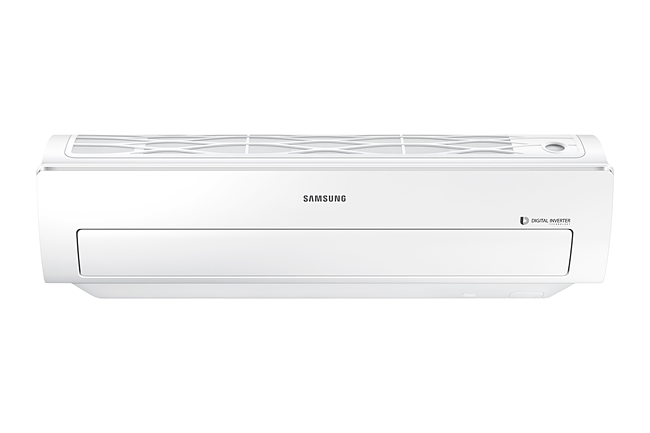

Gallery Image 1 of 9

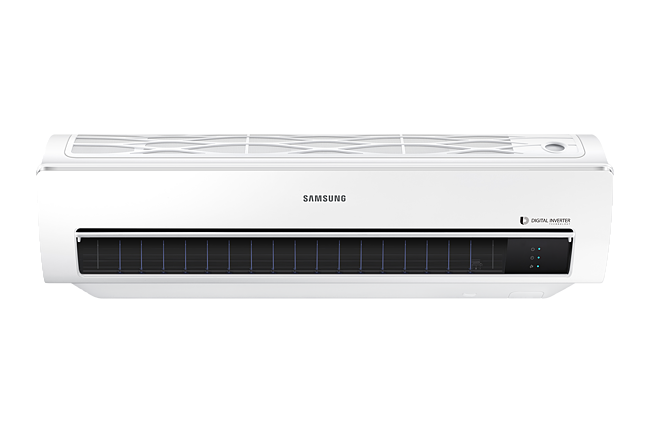

Gallery Image 2 of 9

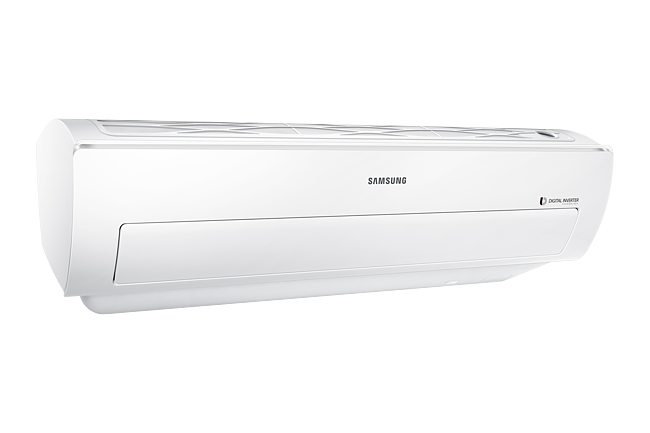

Gallery Image 3 of 9

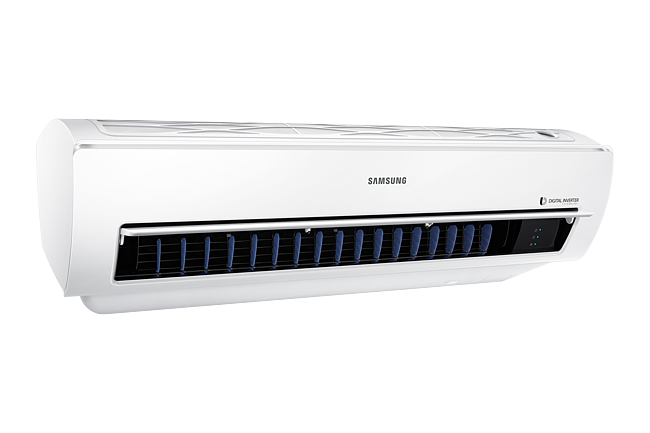

Gallery Image 4 of 9

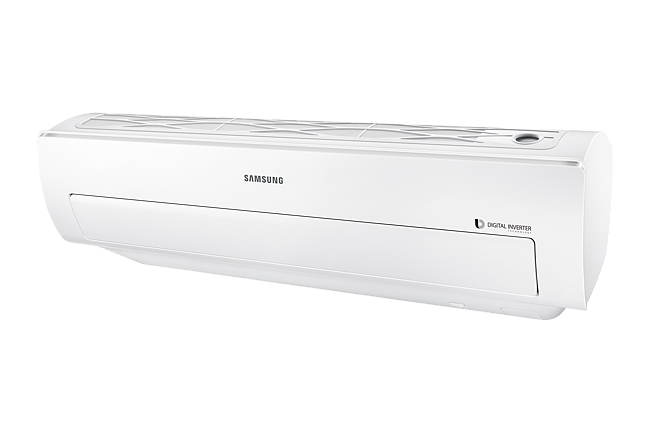

Gallery Image 5 of 9

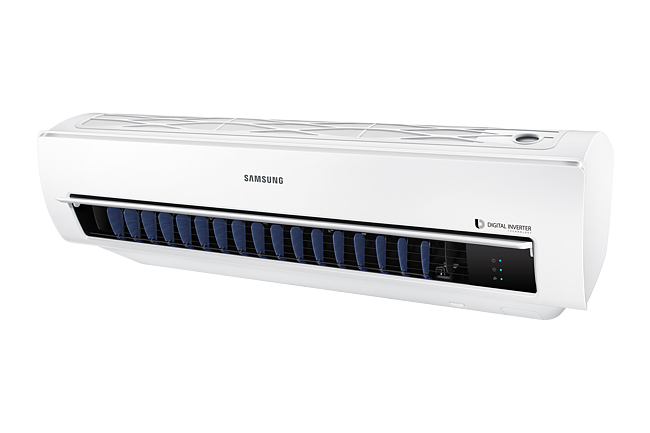

Gallery Image 6 of 9

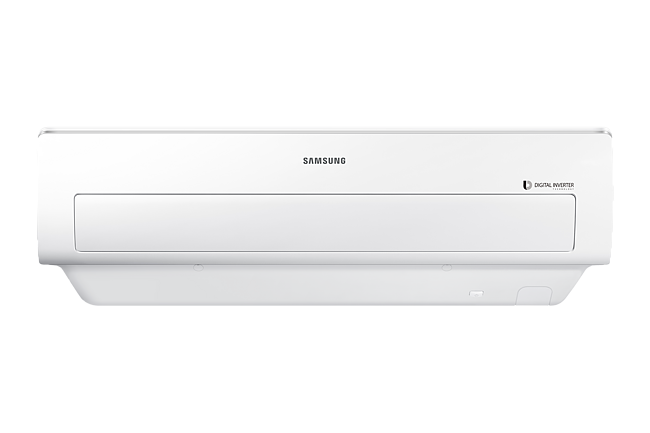

Gallery Image 7 of 9

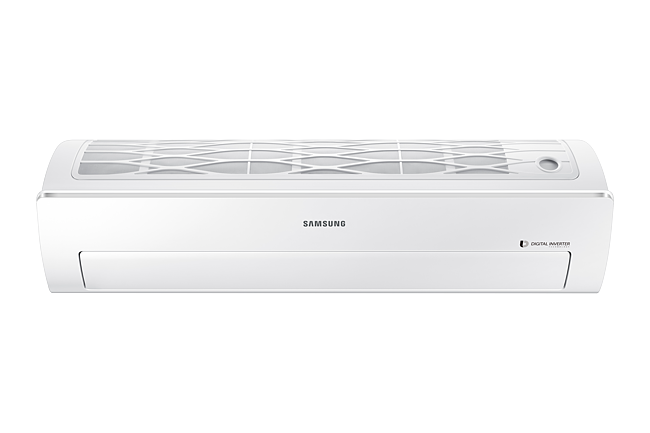

Gallery Image 8 of 9

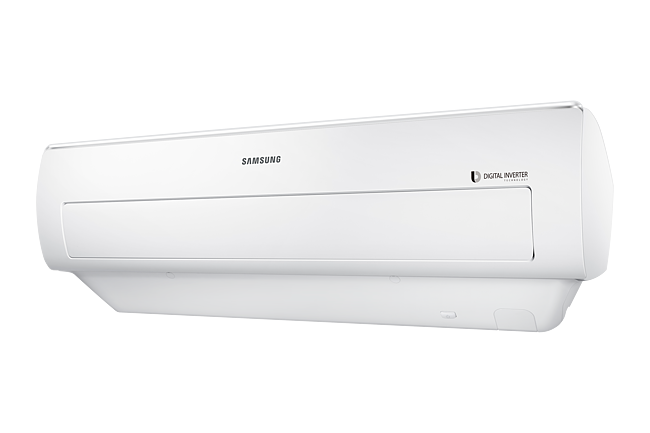

Gallery Image 9 of 9
» «

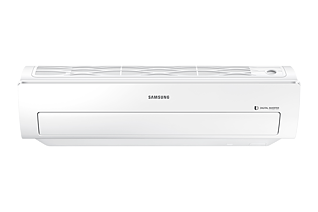

Thumbnail Image 1 of 9

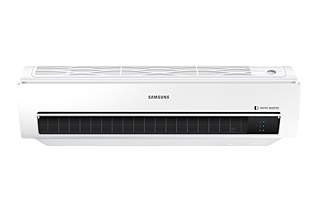

Thumbnail Image 2 of 9
Thumbnail Image 3 of 9
Thumbnail Image 4 of 9

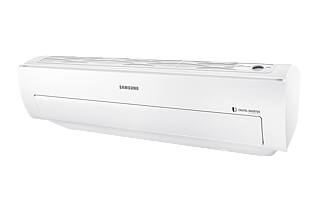

Thumbnail Image 5 of 9

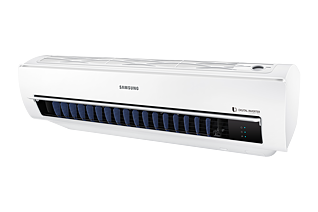

Thumbnail Image 6 of 9

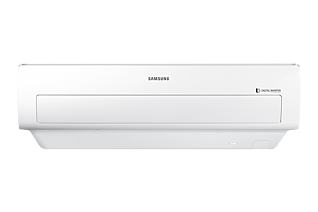

Thumbnail Image 7 of 9

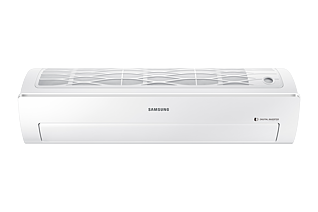

Thumbnail Image 8 of 9

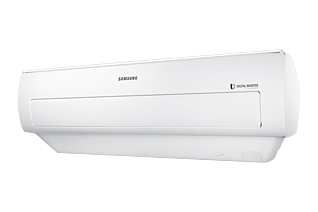

Thumbnail Image 9 of 9
» «
Fast Cooling
Triangle Design
Save Energy
Easy Filter
38% Faster Cooling
An innovative triangle architecture cools the air 38% faster1, so you can quickly feel more comfortable. With a wider inlet and outlet* and more air flow using a bigger fan, its unique shape cools your room rapidly.
38% Faster Cooling
1 Tested on AR09JSPFAWK compared with Samsung conventional model AR09JQFPAUR.
More air in
The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its unique triangular design allows for a wider inlet, so more air can be drawn in.
More air in
More air flow
The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its unique triangular design allows for a bigger fan to ensure that air is cooled and expelled faster.2
More air flow
2 Tested on AR09HSFSBWK model. Compared with Samsung conventional model AQV09TWS.
More air out
The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its uniquely triangular design allows for an outlet with improved width and angle, and extra v-blades ensure that air is expelled farther and wider.3
More air out
3 Tested on AR09HSFSBWK model. Compared with Samsung conventional model AQV09TWS.
Spreads cool air even further
Cools evenly for corner to corner comfort. Extra v-blades, with a wider4 angle of movement, disperse cool air across a wider area and its upward air flow structure expels air over a longer distance.
Spreads cool air even further
4 Tested on AR09FSSSBWK compared with Samsung conventional model AQV12TWS.
Works smart. Saves energy.
An energy-efficient Digital Inverter with a SEER 10.1 rating maintains the desired temperature without frequently turning off and on. So it consumes less energy5 and helps you to stay comfortable for long periods.
Works smart. Saves energy.
5 Tested on AR09HSSDAWK/EU compared with Samsung conventional model AQ09TSB.
Optimized 2-step cooling
The Samsung Air Conditioner begins cooling the air fast using its Fast Cool mode. It then automatically changes to Comfort Cool mode to maintain the desired temperature, so don’t have to keep changing the settings.
Optimized 2-step cooling
Save energy even when alone
Single User mode uses less compressor capacity, reducing power consumption6, while still providing a cool and comfortable environment. So you can use it when alone without worrying about the electricity bill.
Save energy even when alone
6 Tested on AR09FSSSCWK/SA compared with Samsung conventional models. Based on the accumulated power consumption of Normal mode vs. Single User mode.
Easy to clean filter
The Easy Filter is located outside, on the top, so it can easily be taken out and cleaned. Its anti-bacterial coating filters dust, dangerous airborne contaminants and allergens8.
Easy to clean filter
8 Tested in Korea test lab (FITI/KEMTI) and Japan test lab (ITEA). Data has been measured under specific testing conditions and may vary based on environmental factors.
Fin & Chassis Protector
The AR5500 Air Conditioner can endure extremely hot temperatures, due to a larger condenser and optimized refrigerant flow. It also has anti-corrosion coating that stops the condenser and chassis from rusting.9
Fin & Chassis Protector
9 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC
Compressor protector
The AR5500 Air Conditioner keeps going even in the most challenging environments with its Triple Protector Plus technology, which protects the compressor from low-voltage shock caused by an overload of power surges.10
Compressor protector
10 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC
Controller Protector
Triple Protector Plus also includes technology that protects the controller from high-voltage discharge caused by fluctuating electrical currents11, so you don’t need to use a separate voltage stabilizer.
Controller Protector
11 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC
Triangle Wall-mount Air Conditioner 8-Pole Inverter 1.0 HP
9,400 Btu/hr
Capacity (Cooling, Btu/hr)
2.75 kW
Capacity (Cooling, kW)
3.24 W/W
EER (Cooling, W/W)
660 x 475 x 242 mm
Net Dimension (Outdoor, WxHxD)
SHOW MORE SPECS
  • Capacity (Cooling, Btu/hr)
    9,400 Btu/hr
  • Capacity (Cooling, kW)
    2.75 kW
  • EER (Cooling, W/W)
    3.24 W/W
  • Net Dimension (Outdoor, WxHxD)
    660 x 475 x 242 mm
Capacity
  • Capacity (Cooling, Min - Max, Btu/hr)
    3,350 - 11,300 Btu/hr
  • Capacity (Cooling, Min - Max, kW)
    0.98 - 3.31 kW
Energy Efficiency
  • SEER(W/W, Energy Label)
    12.5
  • EER (Cooling, Btu/hW)
    11.06 Btu/hW
  • Energy Star Rating (Cooling)
    5 Star
Noise Level
  • Noise Level (Indoor, High/Low, dBA)
    37 / 21 dBA
  • Noise Level (Outdoor, High/Low, dBA)
    50 dBA
Electrical Data
  • Power Source(Φ/V/Hz)
    1, 220 - 240, 50
  • Power Consumption(Cooling, W)
    850 watts
  • Operating Current(Cooling, A)
    4 A
Physical specification
  • Gross Dimension (Indoor, WxHxD)
    886 x 317 x 335 mm
  • Gross Dimension (Outdoor, WxHxD)
    778 x 550 x 331 mm
  • Net Dimension (Indoor, WxHxD)
    826 x 261 x 261 mm
  • Gross Weight (Indoor, kg)
    11.2 kg
  • Gross Weight (Outdoor, kg)
    21.5 kg
  • Net Weight (Indoor, kg)
    9.7 kg
  • Net Weight (Outdoor, kg)
    19.4 kg
  • Loading Quantity (20/40/40Hft without Pipe)
    116 / 246 / 281
Technical Information
  • Piping Length (Max, m)
    15 m
  • Piping Height (Max, m)
    7 m
  • SVC Valve (Liquid (ODxL))
    6.35
  • SVC Valve (Gas (ODxL))
    9.52
  • Moisture Removal (l/hr)
    1 l/hr
  • Air Circulation (Cooling, ㎥/min)
    11 ㎥/min
  • Refrigerant (Type)
    R410A
  • Refrigerant (Charging, kg)
    0.58 kg
  • Low Ambient (Cooling, ℃)
    16 - 46 ℃
  • Outdoor Unit (Compressor Type)
    8 POLE
  • Outdoor Unit (Anti-Corrosion Fin)
    Yes
Air Flow
  • Air Direction Control (Up/Down)
    Auto
  • Air Flow Control Step (Cool/Fan)
    5 / 4
Air Purification
  • PM 2.5 Filter
    No
  • Allergy Care
    Yes
  • Anti-Bacteria Protector
    Yes
  • Auto Clean (Self Cleaning)
    Yes
  • Virus Doctor
    No
  • Easy filter
    Yes
  • Easy Filter Plus
    No
Convenience
  • Smart wifi
    No
  • Filter Cleaning Indicatior
    Yes
  • Indoor Temp. Display
    No
  • Display On/Off
    No
  • Beep On/Off
    Yes
  • 24-Hour Timer
    Yes
  • Auto Changeover
    No
  • Auto Restart
    Yes
Operating Mode
  • 2 Step Cooling
    Yes
  • Fast Cool
    Yes
  • Comfort Cool
    Yes
  • Dlight Cool
    No
  • Good Sleep
    Yes
  • Single User Mode
    Yes
  • Dehumidification
    Yes
  • Fan Mode
    Yes
  • Quiet
    Yes
