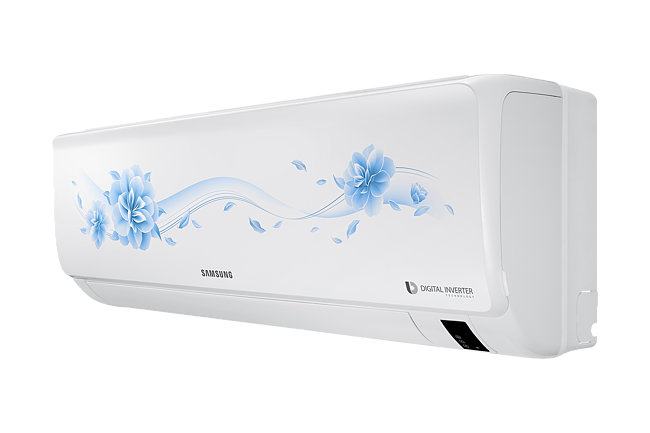

AR18RV3HFTY Triple Inverter Split AC powered by Digital Inverter 8-Pole 5.00kW (1.5T)

Saves Energy

Fast Cooling

Works smart, saves energy

An energy-efficient Digital Inverter 8-Pole maintains the desired temperature without frequently turning off and on. So it uses less energy* and helps you stay comfortable for long periods.

* Tested on AR09MSFHBWKNET compared with Samsung conventional model AQ09TSB.

Fast Cooling

Fast Cooling Mode cools much faster by running the compressor at the maximum level with the fastest fan speed for 30 minutes*. It’s Digital Inverter 8-Pole also helps it quickly reach the maximum Hz when it starts.

* Tested on AR09MSFHBWKNET compared with Samsung conventional models.

Keeps comfortably cool

The 2-Step Cooling Mode begins cooling the air fast using its Fast Cool mode. It then automatically changes to Comfort Cool mode to maintain the desired temperature, so don’t have to keep changing the settings.

Stable performance

Keeps going in the most challenging environments with Triple Protector Plus technology. It prevents overloads, with Voltage Fluctuation Protector* feature, Samsung AC compressor can withstand range of voltage fluctuation (130Vac to 290Vac) ensuring stable performance and peace of mind. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.

*Available on Convertible AC range. Voltage range varies from model to model. Stabilizer will cut off the electric input once voltage surges / Drops beyond range, and will auto restart the AC once voltage will turn as per above voltage range, if power fluctuation is beyond limit mentioned then a stabilizer is required.

Enjoy good night’s sleep

Good Sleep mode creates the desirable climate for a good night’s sleep. With its temperature control, it keeps you comfortable, so you fall asleep fast, sleep deeply, and wake up refreshed.

Automatic temp. control

Auto Change Over automatically selects the operating mode required to maintain the set temperature. So you can enjoy a consistently comfortable environment without continually changing settings.

Stays fresh

When the air conditioner is turned off the Auto Clean function automatically runs a fan to remove dust and moisture in the heat exchanger. So it stays clean and dry, which prevents the growth of bacteria and mildew.

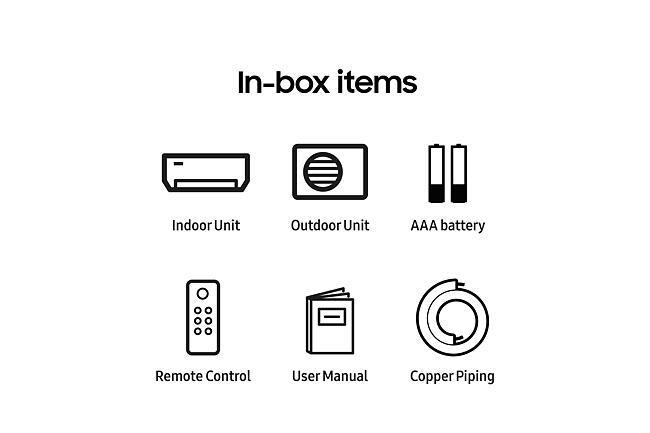

In-box items

Indoor Unit - 1 unit
Outdoor Unit - 1 Unit
AAA battery - 2 Units
Remote Control - 1 Unit
User Manual - 1 Unit
Copper Piping (3 meter standard) - 1 Unit

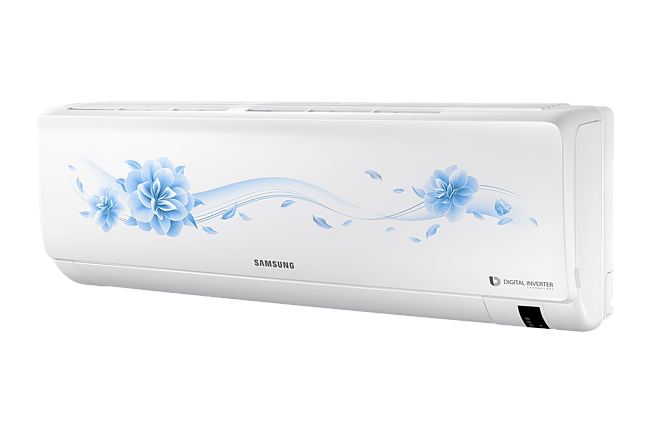

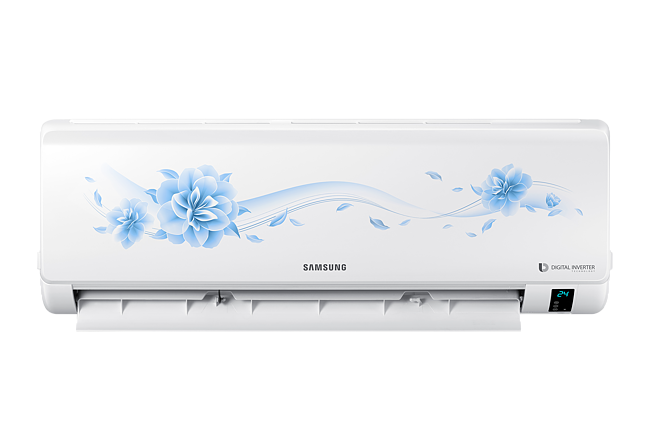

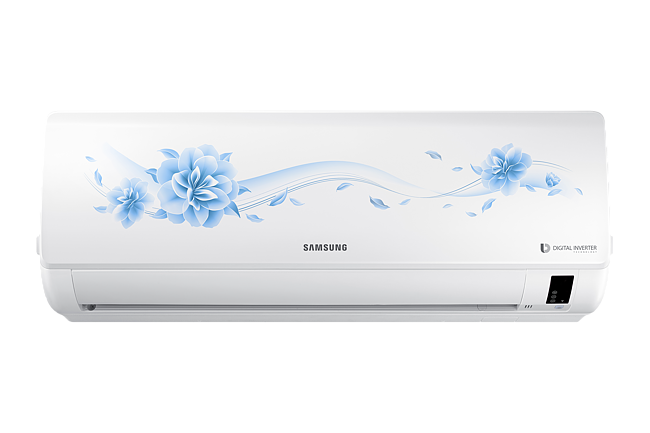

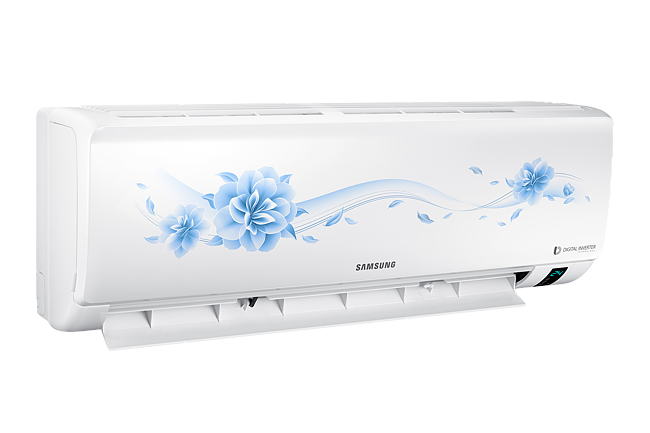

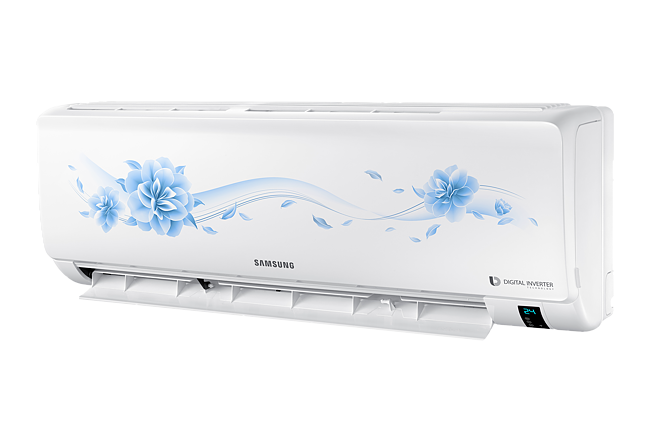

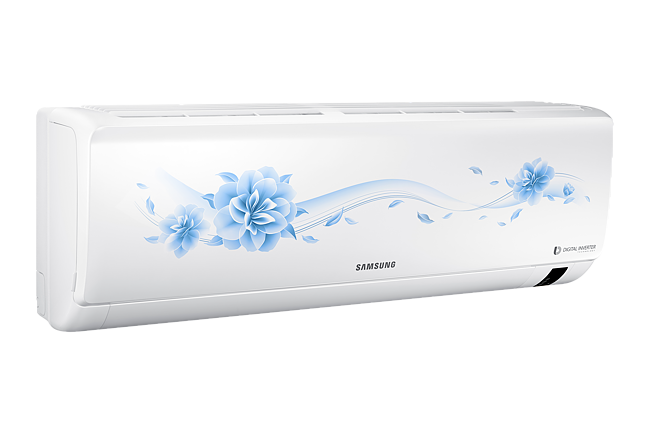

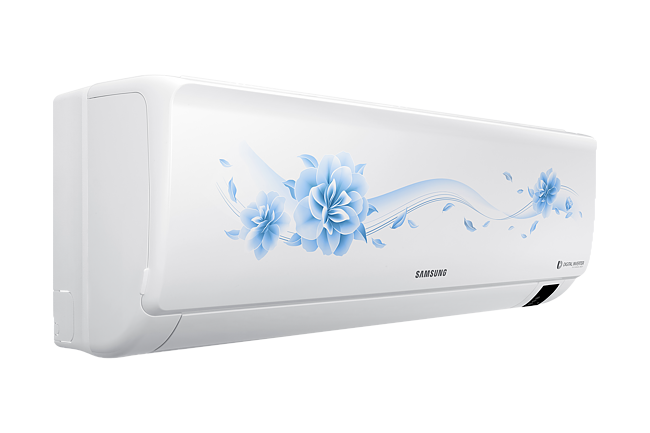

Photo Gallery

5.00 kW

Capacity (Cooling, kW)

2.94 W/W

EER (Cooling, W/W)

890*285*251 mm

Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

R410A

Refrigerant (Type)

SHOW MORE SPECS

Capacity (Cooling, kW)

5.00 kW
EER (Cooling, W/W)

2.94 W/W
Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

890*285*251 mm
Refrigerant (Type)

R410A

Capacity

Capacity (Cooling, Btu/hr)

17061 Btu/hr
Capacity (Cooling, Min - Max, Btu/hr)

6,585 ~ 21,155 Btu/hr
Capacity (Cooling, Min - Max, kW)

1.93 ~ 6.2 kW

Energy Efficiency

ISEER (W/W)

3.60 W/W
Energy Efficiency Class for cooling (Grade)

3 ★

Noise Level

Noise Level (Indoor, High/Low, dBA)

45 / 26 dBA
Noise Level (Outdoor, High/Low, dBA)

53 dBA

Electrical Data

Power Source(Φ/V/Hz)

1 / 230 / 50
Power Consumption(Cooling, W)

1700 W
Operating Current(Cooling, A)

7.5 A

Physical specification

Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

943*299*352 mm
Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

926*640*412 mm
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

790*548*285 mm
Gross Weight (Indoor, kg)

11.5 kg
Gross Weight (Outdoor, kg)

35.0 kg
Net Weight (Indoor, kg)

10.0 kg
Net Weight (Outdoor, kg)

30.6 kg

Technical Information

Piping Length (Max, m)

20 m
Piping Height (Max, m)

12 m
SVC Valve (Liquid (ODxL))

6.35
SVC Valve (Gas (ODxL))

12.7
Moisture Removal (l/hr)

2.0 l/hr
Air Circulation (Cooling, ㎥/min)

15.7 ㎥/min
Refrigerant (Charging, kg)

1.15 kg
Low Ambient (Cooling, ℃)

15~54 ℃
Outdoor Unit (Compressor Type)

8-POLE
Outdoor Unit (Anti-Corrosion Fin)

Yes

Air Flow

Air Direction Control (Up/Down)

Auto
Air Direction Control (Left/Right)

Manual
Air Flow Control Step (Cool/Fan)

5/4

Air Purification

Allergen filter

No
Anti-Bacteria

Yes
Auto Clean (Self Cleaning)

Yes

Convenience

Smart wifi

No
Filter Cleaning Indicatior

Yes
Indoor Temp. Display

Yes
Display On/Off

Yes
Beep On/Off

Yes
24-Hour Timer

Yes
Auto Restart

Yes

Operating Mode

2 Step Cooling

Yes
Fast Cool

Yes
Comfort Cool

Yes
Good Sleep

Yes
Single User Mode

Yes
Dehumidification

Yes
Fan Mode

Yes
Quiet

Yes

Smart

Wi-Fi Embedded

No

App Connectivity

SmartThings App Support

No

Manufacturer’s Information

Manufactured by

Samsung
Country of Origin

India, Vietnam, China, Korea*Country of origin shall be as mentioned on the Product
Imported by

Samsung India Electronics Pvt. Ltd. having its Registered Office at: 6th Floor, DLF Centre, Sansad Marg, New Delhi-110001

Images shown here are for representational purpose only, actual may vary. All features, specifications and prices are subject to change without prior notice. Model availability may vary from location to location.

^## Star rating bands valid from 1^st July 2022 to 31^st December 2024 ISEER (kWh/ kWh)
Star rating band: 1 Star (Minimum: 3.3kWh, Maximum: 3.49kWh)
Star rating band: 2 Star (Minimum: 3.5kWh, Maximum: 3.79kWh)
Star rating band: 3 Star (Minimum: 3.8kWh, Maximum: 4.39kWh)
Star rating band: 4 Star (Minimum: 4.4kWh, Maximum: 4.99kWh)
Star rating band: 5 Star (Minimum: 5.0kWh)

*Important Note: Star rating of the Air conditioner from 1^st Jul 2022 onwards will be one star less in some models than it's rating on 1^st January 2018 to 20^th Jun 2022.
* Images shown here are for representational purpose only, actual may vary. All features, specifications and prices are subject to change without prior notice. Model availability may vary from location to location.
