Features
1000 W total power output
Give your movies, music and games added depth and detail with 1000 W total power output.
Surround yourself in cinematic sound

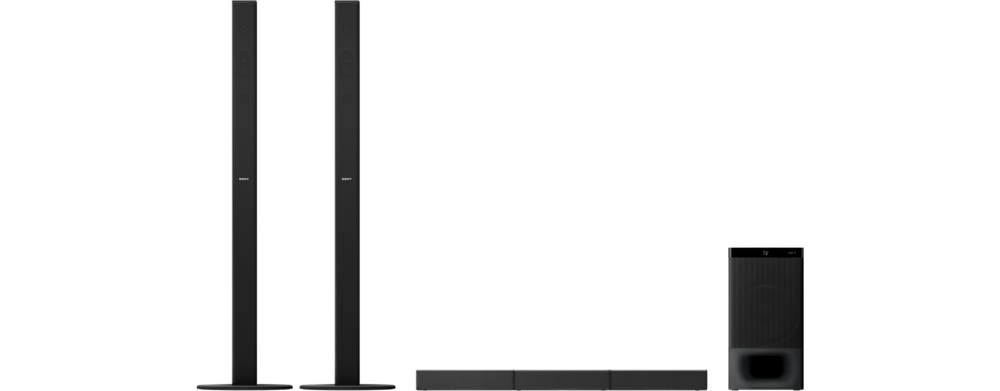

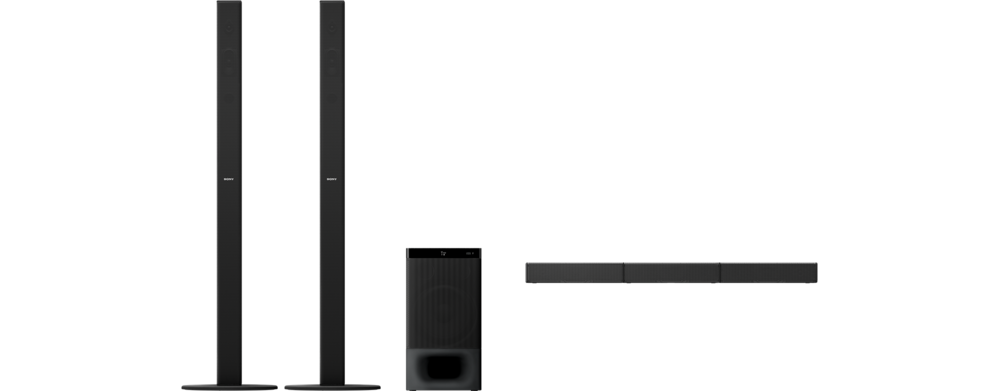

Through a 3-channel soundbar, subwoofer and powerful tall-boy rear speakers, you can fill your room with all the big sounds of the movies.
DTS format support
The DTS format creates dynamic surround sound, bringing movies and music to life.
Dolby® Digital
Enjoy dramatic, high-quality surround sound from 5.1ch soundbar, separate audio channels with Dolby® Digital.
Tall-boy speakers for true surround sound
Standing at 120 cm tall and with full-range 65 mm drivers, our tall-boy rear speakers are perfectly positioned to deliver all those big sounds that you enjoy at the cinema.
Stream music from your smartphone
Enjoy your favourite tracks wirelessly through a Bluetooth® connection.
Easy setup, straight out the box
You're ready to go, almost instantly. Just plug in and enjoy 5.1ch soundbar channels of real surround sound. All your cables run into the subwoofer, so you can keep things neat and tidy.
Browse and control easily with Sony | Music Center app
With the Sony | Music Center app you can control music streamed wirelessly and played over USB.
HDMI ARC
HDMI ARC (Audio Return Channel) lets you connect to compatible TVs with a single cable.
USB port
Connect to music on your USB drive, control playback on-screen or from your phone, with the Sony | Music Center app.
Optical input
Connect to the optical input and enjoy high quality sound for movies and more.
Specifications
Fill the room with 5.1ch real surround sound
Tall boy speakers play audio at listening height
Easy connection with HDMI ARC
USB audio playback
Bluetooth® connection
POWER OUTPUT (CENTRE)
152 W
Power Output (Total)
1000 W
POWER OUTPUT (FRONT)
152 W+152 W
POWER OUTPUT (SUBWOOFER)
240 W
POWER OUTPUT (REAR)
152 W+152 W
Amplifier Channels
5.1ch
Input and output terminals
Optical-audio input, Analogue audio input (stereo mini), USB type A
MAIN UNIT SIZE – BODY ONLY (W X H X D)
900 x 64 x 90 mm
SUBWOOFER SIZE (W X H X D)
231 x 438 x 378 mm
Remote Commander, HDMI Cable, Wall Hanging Template, Quick Setup Guide, Instruction Manual, Batteries
Size & Weight
MAIN UNIT SIZE – BODY ONLY (W X H X D) 900 x 64 x 90 mmMAIN UNIT WEIGHT – BODY ONLY 3.0 kgSUBWOOFER SIZE (W X H X D) 231 x 438 x 378 mm
SUBWOOFER WEIGHT 10.2 kgRear Speaker Size (W x H x D)78 x 1200 x 78 mmRear Speaker Weight3.6 kg
Amplifier
Amplifier TypeDigital Amplifier, S-MasterAmplifier Channels5.1chPower Output (Total)1000 WPOWER OUTPUT (FRONT)152 W+152 W
POWER OUTPUT (CENTRE)152 WPOWER OUTPUT (SUBWOOFER)240 WPOWER OUTPUT (REAR)152 W+152 W
Subwoofer
Subwoofer typeWired
Interface
Input and output terminalsOptical-audio input, Analogue audio input (stereo mini), USB type ABluetooth®Yes
Bluetooth® versionver. 1.3
HDMI
Number of Input/Output0/1 (ARC)BRAVIA® SyncYes
HDMI CECYes
Audio formats
Optical InputDolby® Digital, Dolby® Dual mono, DTS®, LPCMUSBWav, mp3, WMA
Bluetooth® (Receiver)AAC SBC
Sound Function
Sound ModeAuto Sound, Cinema, Music, Standard
Sound EffectNight Mode, Voice Mode
Application
Sony | Music Center (Bluetooth® Connection)Yes
Details
Power Consumption140 W
Power consumption(on QuickStart mode)less than 0.5 W (Bluetooth® standby off)
